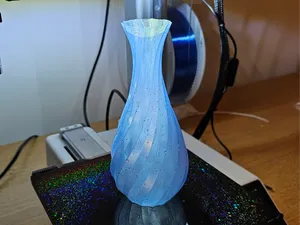

Vase (Spiral Theme)

Vase (Spiral Theme)

Dimensions: 95mm X 195 mm;

The prototype is tested on Qidi Tech X-Plus printer with 0.4 mm nozzle.

Material: ABS (niceABS);

Print Settings:

- Extruder:

- Flow: 100%;

- Retraction Distance: 1.5 mm;

- Retraction Speed: 30 mm/s;

- Layer:

- Layer Height: 0.2 mm;

- Line Width (Inner Wall, Outer Wall, Top, Bottom): 0.35 mm;

- Line Width (Infill): 0.42 mm;

- Initial Layer Line Width: 130%;

- Wall Line Count: 3;

- Top Layers: 4;

- Bottom Layers: 3;

- Top/Bottom Patterns: Lines;

- Fill Gaps Between Walls: Everywhere;

- Infill:

- Infill Density: 50%;

- Infill Pattern: Zig Zag;

- Infill Overlap Percentage: 30%;

- Infill Before Walls: Yes;

- Additions:

- Z Seam Alignment: Sharpest Corner;

- Skin Overlap Percentage: 30%;

- Combing Mode: Within Infill;

- Build Plate Adhesion Type: Brim;

- Brim Width: 8 mm;

- Speed:

- Infill Speed: 50 mm/s;

- Wall Speed (Outer, Top, Bottom): 25 mm/s;

- Wall Speed (Inner): 40 mm/s;

- Initial Layer Speed: 25 mm/s;

- Travel Speed: 80 mm/s;

- Minimum Layer Time (Body): 7 s;

- Temperature:

- Printing Temperature: 220 deg;

- Build Plate Temperature: 100 deg;
