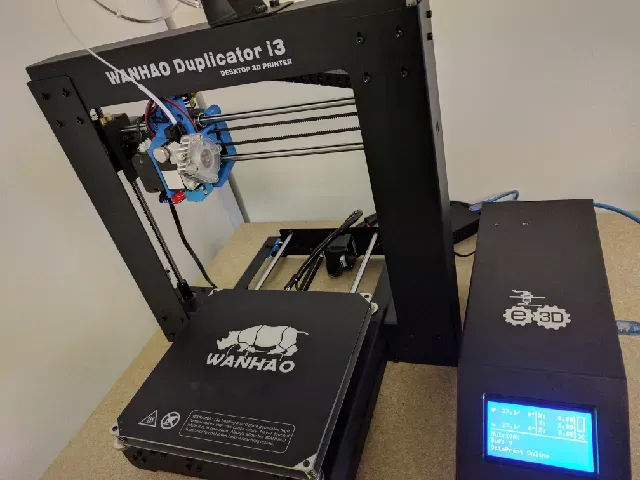

Wanhao Duplicator i3 V2.1 E3D Titan Aero Upgrade

Wanhao Duplicator i3 V2.1 E3D Titan Aero Upgrade.

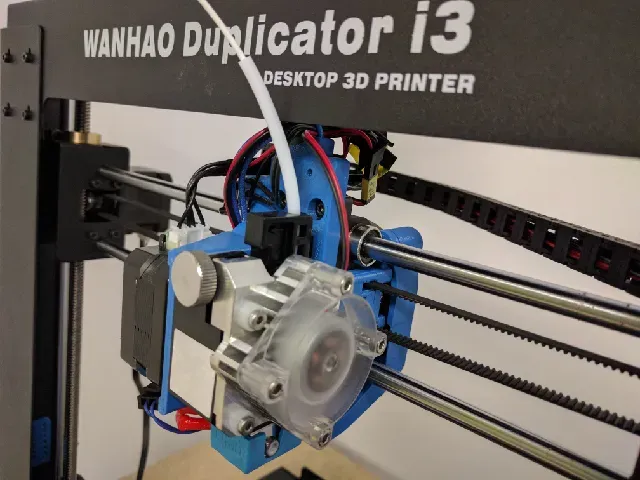

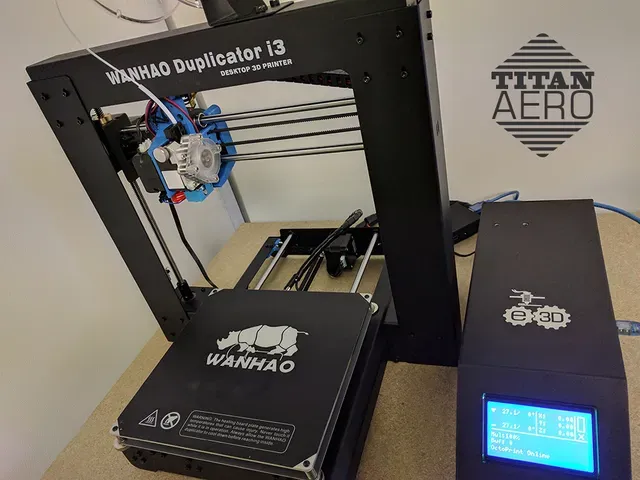

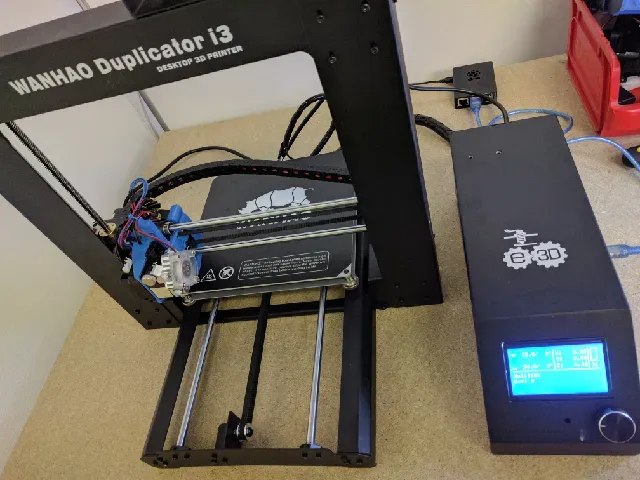

Upgrade your Wanhao Duplicator i3 V2.1 to use E3D's Titan Aero !

Use the complete range of E3D Heater Blocks & Nozzles | http://e3d-online.com/

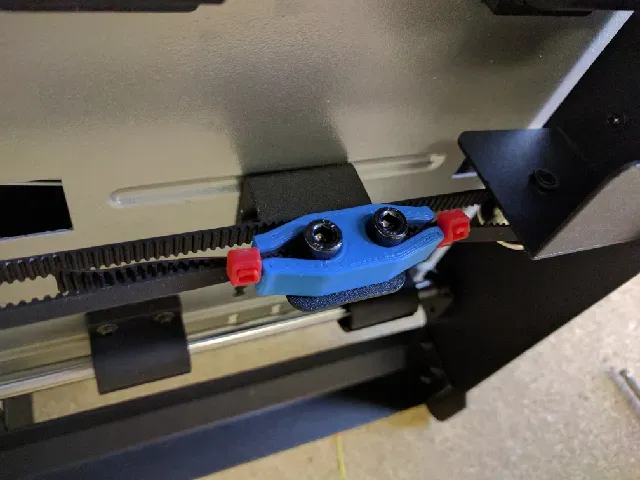

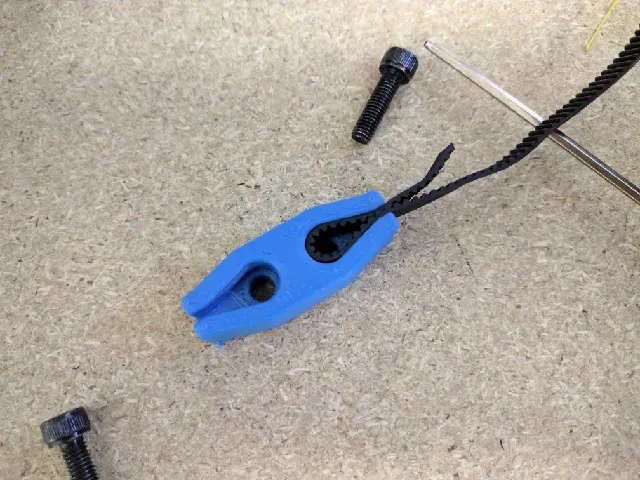

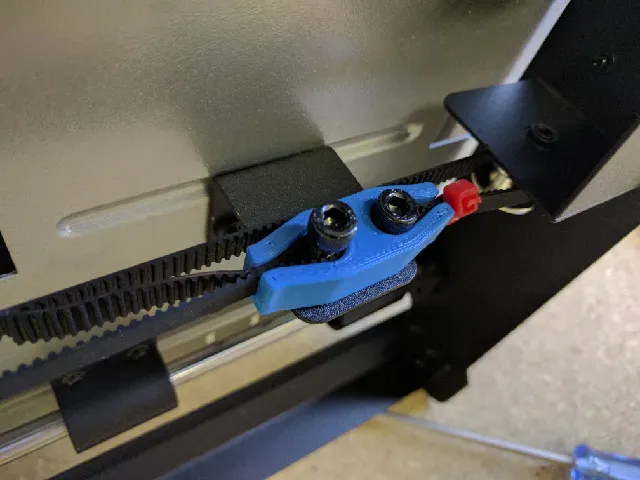

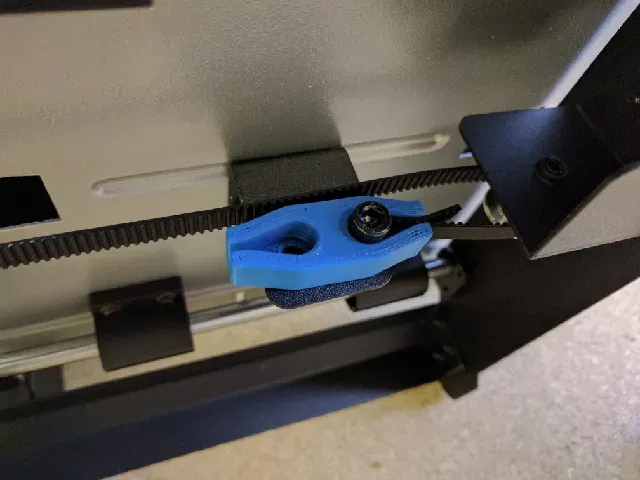

I have also added in a few modifications to remove the dodgy belt-springs.

Refer to the Instructional_Images_Part_1/2.zip files for build and assembly guidance.

E3D Shopping List.

1 x E3D 12v Titan Aero .

1 x 12V 50x50x15 Blower Fan .

1 x E3D Thermistor Cartridge .

Print with your favourite thermoplastic | http://e3d-online.com/All-Filament

Additional Parts Shopping List

(eBay Affiliate Links)

A Selection of assorted Metric Socket Cap Screws (2 x M4 30mm, 2 x M4 20mm).

A Selection of assorted Metric Square Nuts (2 x M4).

A selection of assorted Metric Hex Half Nuts (2 x M4).

A Selection of assorted serated washers .

A Selection of assorted Nylon spacers (3 x M3 3mm).

A Selection of assorted Cable Ties .

A Selection of assorted Heatshrink .

A Selection of assorted Heatshrink .

I highly recommend updating the Melzi board to something which can fit on full-featured Marlin , features like autoleveling will make a huge improvement to your experience. Something like a RAMPS, RUMBA, Duet, RAMBO. Refer to the RepRap Wiki for a list.

Love 3D printing? Love T-Shirts?

Then you need to check out steps-per-mm.xyz !

It is loaded with a huge range of wearable Parts & Components.

Please help support my work here on Thingiverse and on Instructables by using the following affiliate links when making purchases. Thanks :)

eBay.com | eBay.co.uk | eBay.fr | Amazon.co.uk

Print instructions

Category: 3D Printer Extruders Print Settings

Printer: E3D's BigBox

Rafts: No

Supports: Yes

Resolution: 0.25mm

Infill: 15%
