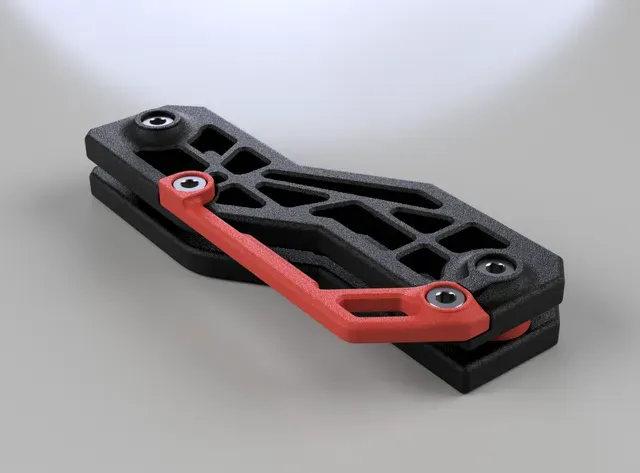

Minimalist Geometric Key Holder

Inspired by the Wallie(var) - Advanced Lever Action Wallet by Smackmax_ , I designed this matching key holder for daily use. It includes a striking accent for a touch of color and style, making it an ideal choice for those looking for a functional, minimalist addition to their everyday carry that pairs well with a this wallet.

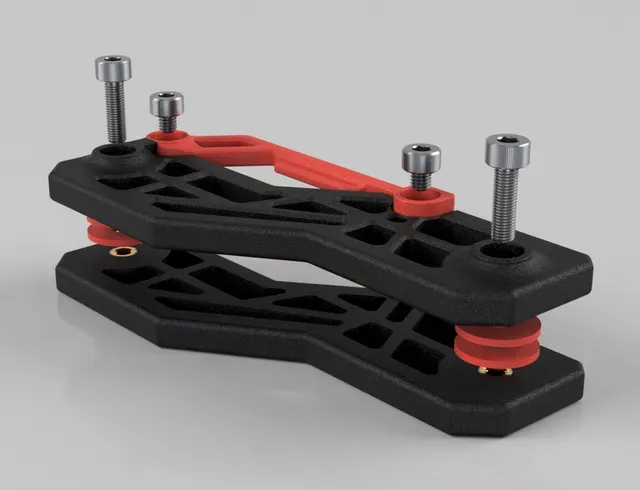

Bill of Materials (BOM):

Socket Head Screws:

- Quantity: 2 - Type: M3 x 3mm Stacking Screws:

- Quantity: 2 - Type: M3 x 15mm (suitable for an 8-key stack) - Note: You may use M3 x 14mm to M3 x 20mm screws, depending on the number of keys in the stack. Threaded Inserts:

- Quantity: 2 - Type: M3 Threaded Inserts - Specifications: Suitable for a body thickness of 4.8mm, requiring an insert depth of 4-4.5mm

Printing Recommendations:

Material: PETG, ABS, or ASA are recommended for their higher temperature resistance, ideal for environments with elevated temperatures (e.g., inside a car during summer).

Print Settings:

- Layer Height: 0.2 mm for a balance between detail and print speed. - Wall Loops: 4 for increased structural integrity and durability. - Infill Density: 50% to provide strength without excessive material use.

09.11.2024

added Keyholder_upper_mainbody_thicker and Keyholder_lower_mainbody_thicker which is arround 1mm thicker and allows you to use M3x4mm screws on the Lever segment instead of M3x3mm.

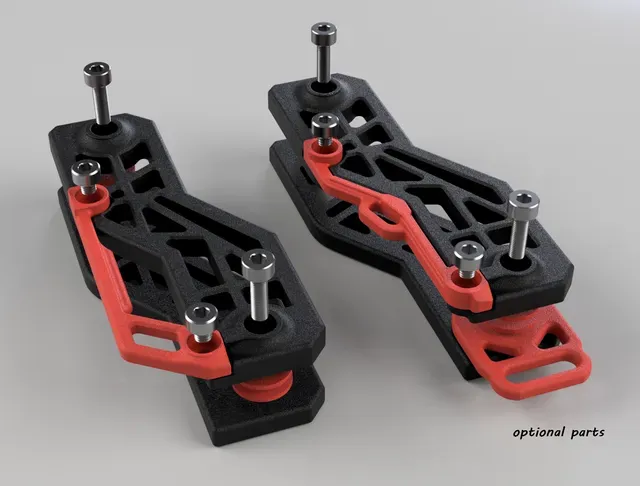

Added some optional parts, optional Keyring mount and a narrow segment.
