Prusa i3 MK2 LED Light strip Brackets

UPDATED DESIGN

https://www.thingiverse.com/thing:3321209

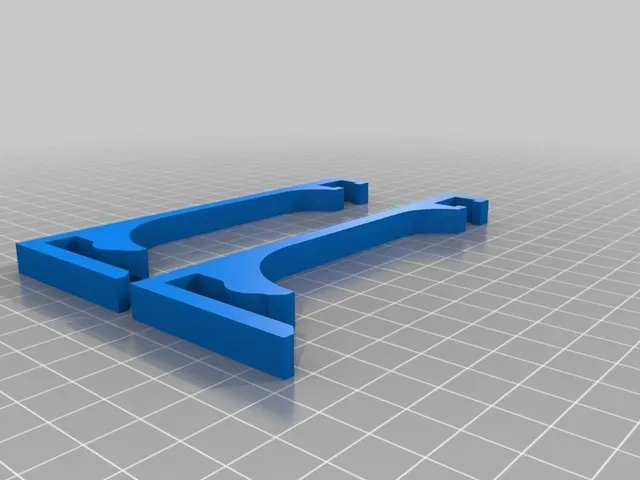

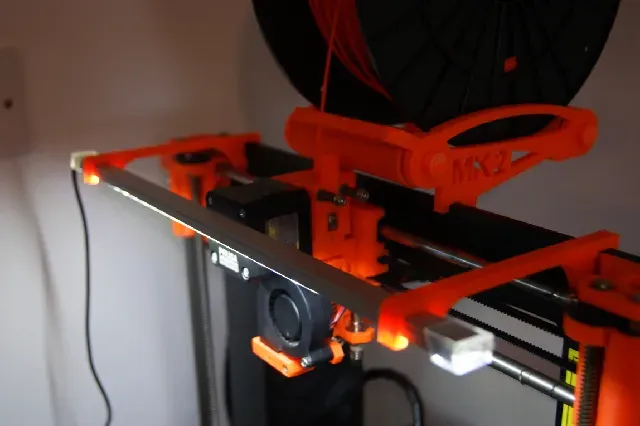

I came across a very cheap LED Strip Light available on eBay, so I designed a simple bracket that requires no fixings; it simply hooks & holds in place on the Prusa frame. The Light strip itself then holds in place by inserting it sideways and then twisting to lock in place.

IMPORTANT NOTE

This bracket is not suitable for very large Prints as the LED holding brackets comes into contact with the X bars on the carriage. The Brackets will also need to be removed when aligning/calibrating the Z axis.

Print instructions

Category: 3D Printer Accessories Print Settings

Printer Brand: Prusa

Printer: Prusa Mk2

Rafts: No

Supports: No

Resolution: 0.15

Infill: 20

Notes:

Top Solid Layers

4

Bottom Solid Layers

4

Infill 20%

I used 20% infill to make sure there was infill in the ends of the bracket that grip the light bar.

Filament from Prusa the Orange EasyABS filament

http://shop.prusa3d.com/en/filament/134-orange-easyabs-filament-1kg.html

LED Strip Light Specification.

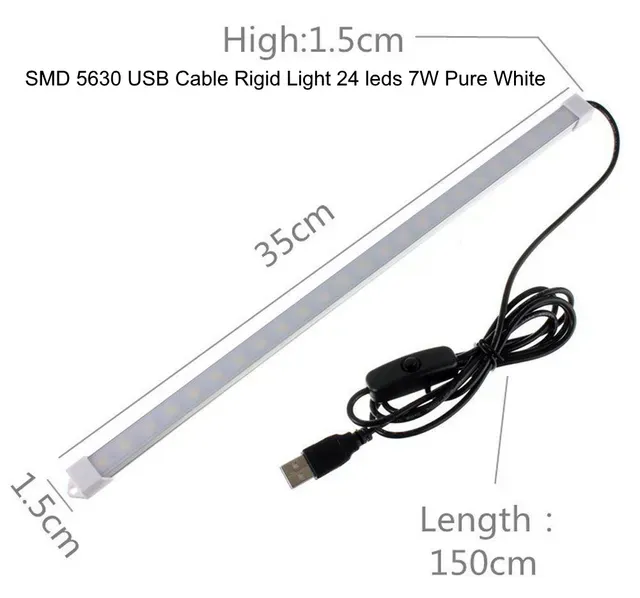

SMD 5630 USB Cable Rigid Light 24 leds 7W Pure White

Led Chip : SMD5630

LED Type : USB Cable

Strip Type : Pure Light

http://m.ebay.co.uk/itm/371642352653?varId=640632740518&\_trksid=p2057872.m2749.l2649&\_mwBanner=1

LED quantity: 24LED Lamp Bead Amount

Voltage: DC 5V

Power :7W

Light Colour: Pure White
