MP5 AEG Curved Mid Cap Mag for Mosquito & Cyma (BETA WIP)

Update 2025-10-14: Removed the remix link to glgr's Curved MP5 magazine . My mag has grown different in every way and is no longer based on his mag design. A remix link no longer made sense. Fitment is based on Cyma's metal-shell AEG mags.

Update 2024-12-05: Changed BB holder so supports are no longer needed for this part. Supports are still needed for the other parts (view photo for details).

Update 2024-12-02: Shortened follower for better smoothness in tight bends.

Update 2024-11-30: Edited BB ramp geometry to ensure better compatibility with double-stack followers like the Z Custom Gen 2.

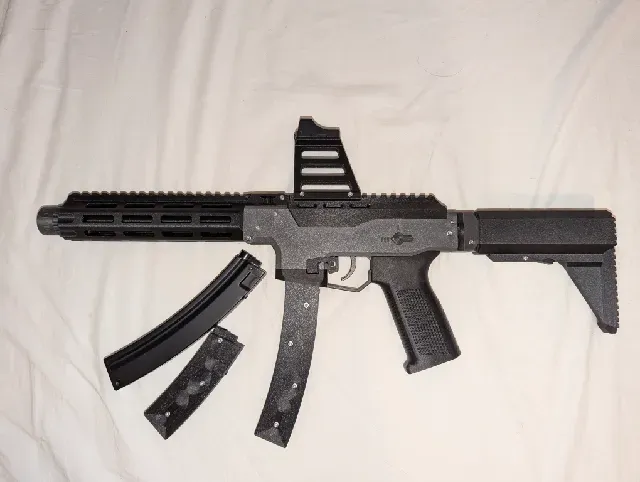

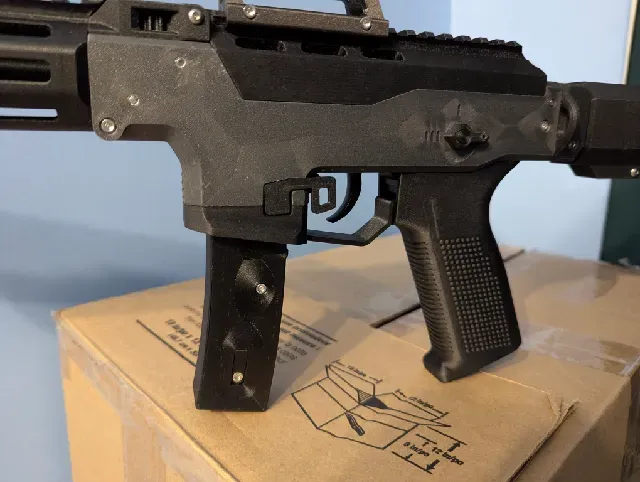

A mostly printable MP5AEG magazine designed specifically for the the Mosquito Open Beta 2 and upcoming Mosquito MK1. Given how the mosquito was designed for Cyma Mags, this should work with CYMA MP5 AEGs as well. Dimensions are based off CYMA metal curved mags.

You'll need a couple screws, nuts, a mag spring, a pen spring (or any small spring that fits), and an articulated follower if you don't want to deal with a DEMONICALLY difficult print.

Print settings:

0.2mm first layer, 0.15mm other layers.

3-4 perimeters

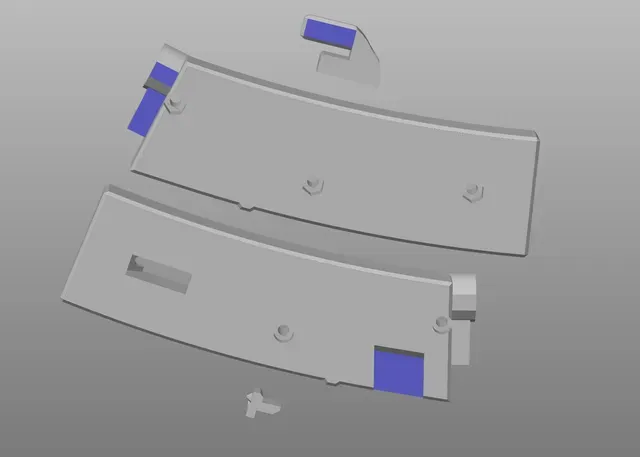

Supports needed (view photo for locations)

Included 2 piece follower is EXCRUCIATINGLY frustrating to print, good luck.

For the follower, use organics supports everywhere with a 30deg threshold, and be careful removing them. You'll also have to break free the joint and work it until it pivots smoothly. The inlcuded 3MF has support enforcers painted on.

Required hardware - short, mid, std:

M3 hex nuts - 3X, 4X, 5X

M3 socket head screw, 18mm-19mm - 3X, 4X, 5X

Mag Spring - Super Feed Springs work but are not recommended.

Spring - 4-5mm outer diameter would work. I used a 4.75mm/9/32" spring since i'm in Canada.

Optional:

3 bits of 1.75mm filament as pins.

A mid cap mag follower if you don't want to deal with the torturous 2 piece follower included in here.

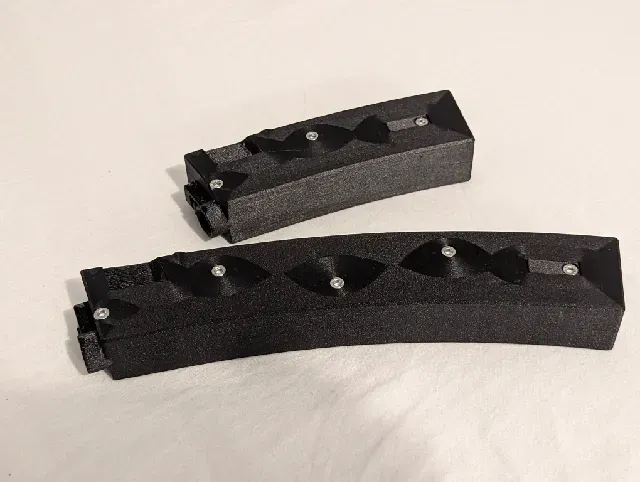

Capacity:

I have not figured out the optimal spring lengths yet, so take these numbers with a ginormous grain of salt.

Standard: 100-120

Medium: 60-70

Short: 30-35

If you want to edit the CAD files, you'll need FreeCAD 1.0 or newer.
