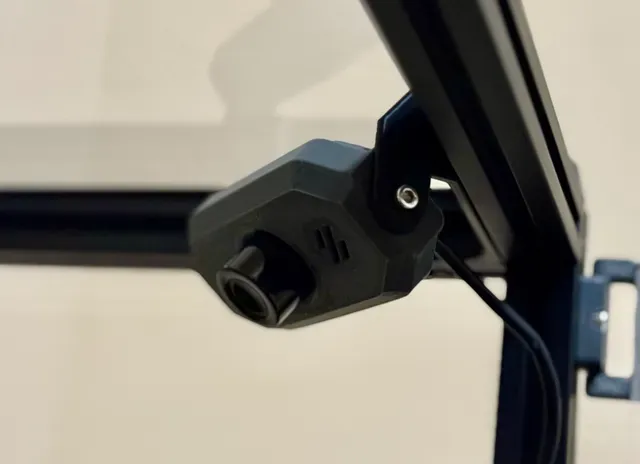

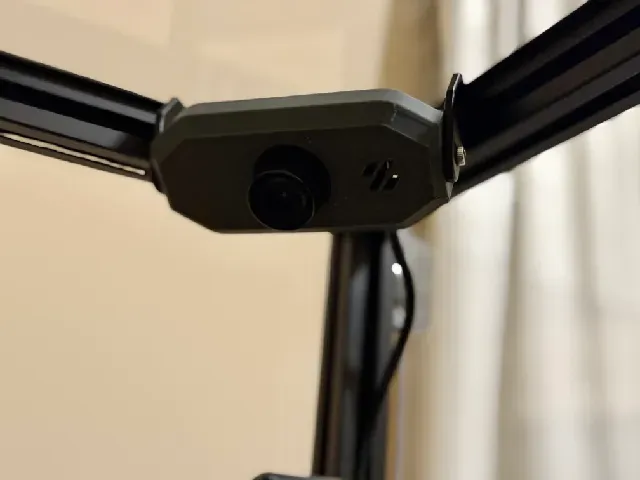

Webcam 2020 Rail Mount (Voron)

I couldn't find a good camera mount for my specific webcam to fit in my smaller 250mm Voron Trident.

So I made one.

It does require you to remove the housing for the webcam and transplant the PCB into the new case. In the scenario that you have different webcam, which is extremely likely, I have included the f3d file for the case base so you can place a new PCB standoff easily.

It is mounted to the frame using M3 hammer T-nuts and M3x8 SHCS. The camera housing connects to the rail bracket using 2 M3 (any length from 10-16mm should work) SHCS.

BOM:

- 2x M3 Hammer T-nuts - 2x M3x8 SHCS - 2x M3 (any length from 10-16mm should work) SHCS
