RatRig VCore4 Hinges for enclosure (v.2.21)

These hinges are designed to align with the holes of the standard RatRig VCore 4 front panel, enabling it to be converted into two doors.

While originally intended for 4mm side panels, these hinges are also compatible with thinner or thicker panels.

They need to be screwed through the side panels, so drilling holes may be required.

Once printed, you will need to 'force' the first rotation and remove the thin layer covering the holes.

Choose the hinges that match your front panel thickness.

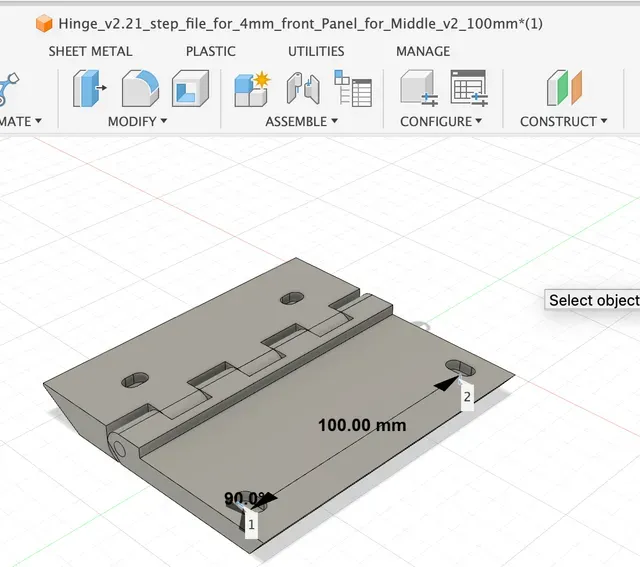

For the Top and Bottom hinges, the 40mm size is recommended. For the middle hinges, select the one that matches the hole spacing of your panel (89mm for RR Handle v1 or 100mm for RR Handle v2).

Your feedback to help improve this design would be much appreciated.

----

Updates:

- [14 Jan 2025] → v2.21: - Updated the model to allow adjustment of the gap between the doors. - Added a 40mm version of the Top & Bottom hinges (easier to install and stronger than the 30mm version). - Uploaded models for front panel thicknesses ranging from 3mm to 6mm. - [10 Jan 2025] → v2.1: Added breakable layer for holes to improve the printing experience. - [8 Jan 2025] → v2: Increased clearance in the hinge axis. - [7 Jan 2025] → v2: Added version with adjustment capability. - [2 Jan 2025] → Updated 'Middle' hinge to support different RR Handle versions: V01 (89mm gap) and V02 (100mm gap). - [ 1 Jan 2025] → v1: Load the initial version
