iPhone holder (all models)

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 5 Likes
  • 42 Downloads
  • 0 Makes
  • 0 Comments
  • 206 Views

Author:CEJ Ing

Published

Download on Printables

Description

Multiple dimensions covering all models from iPhone 11 on - see table below.

For phones with standard (original or Chinese) silicone or other cases use variant “With Case”.

You can also find some stands that you can assemble to the holder with one or two M4 screws.

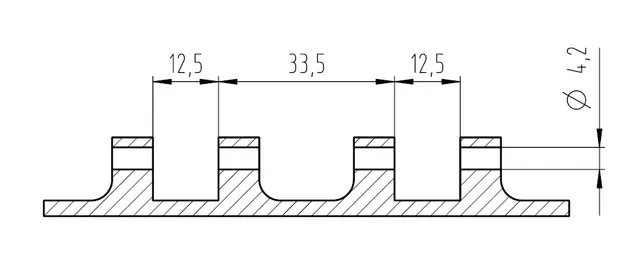

If you need a specific stand or holder you can use the dimensions in the attached drawing.

If you have any proposals for additional stands let me know in the comments.

No case With Case No case With Case

Iphone 11 V9 V10 Iphone 14 V5 V6

Iphone 11 Pro V3 V4 Iphone 14 Plus V13 V14

Iphone 11 Pro Max V11 V12 Iphone 14 Pro V5 V6

Iphone 12 V5 V6 Iphone 14 Pro Max V13 V14

Iphone 12 Mini V1 V2 Iphone 15 V5 V6

Iphone 12 Pro V5 V6 Iphone 15 Plus V13 V14

Iphone 12 Pro Max V13 V14 Iphone 15 Pro V5 V6

Iphone 13 V5 V6 Iphone 15 Pro Max V13 V14

Iphone 13 Mini V1 V2 Iphone 16 V5 V6

Iphone 13 Pro V5 V6 Iphone 16 Plus V13 V14

Iphone 13 Pro Max V13 V14 Iphone 16 Pro V7 V8

Iphone 16 Pro Max V15 V16
