Raspberry Pi 7" Touch Display 2 Frame for RaspberryPi 4 - Vertical by Nerdiy.de
Model details
- Platform
Printables
- Price
- $ 9.00
- License
- PRIVATE-USE
- Personal use only: print for yourself, no selling or sharing.
- Formats
- STL
- 6 Likes
- 0 Makes
- 0 Comments
- 461 Views
Description

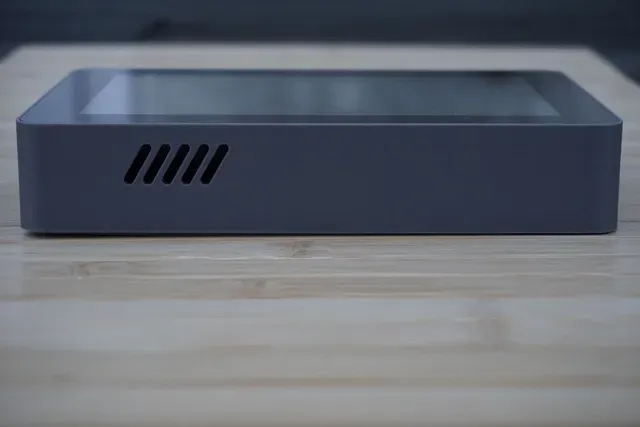

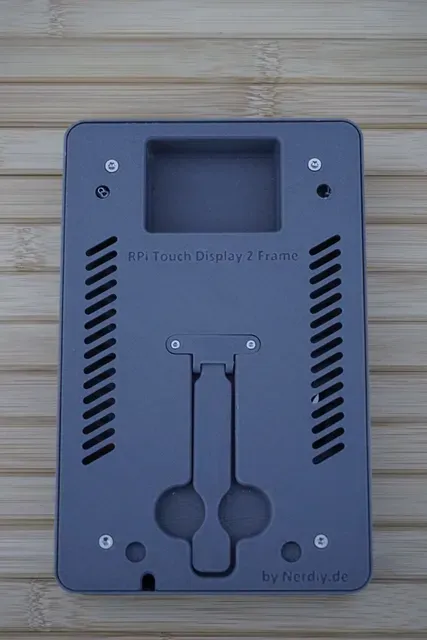

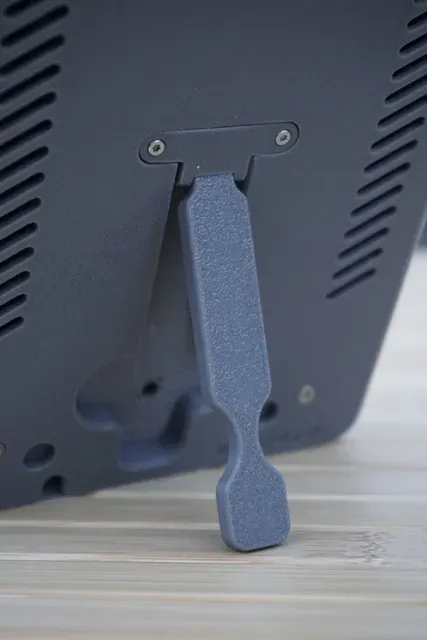

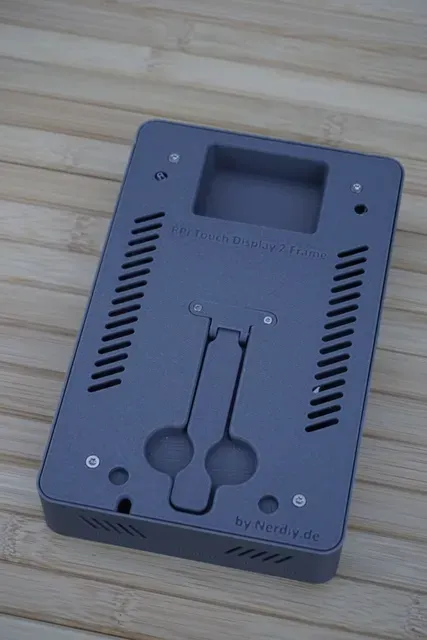

Build a professional protective frame for your Raspberry Pi 4 with integrated 7" Touch Display 2 mounting. This vertical mounting variant provides an optimal viewing angle without top-side cutout.
Here we offer you the STL files for 3D-printed housing parts, specifically developed to securely hold the Raspberry Pi 4 and 7" Touch Display 2 while protecting the components from dust and physical damage.
Print settings
- Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.
- Layer thickness: 0.2mm
- Infill: 25%
- Wall lines: 5
- I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.
Material list, Assembly instructions & more
You can find additional info at the following GitHub repository.
- https://github.com/Nerdiyde/Nerdiy_Products/tree/main/products/raspberry-pi-7-touch-display-2-frame-for-raspberrypi-4-vertical-no-cutout
