Kobra 3 ACE PRO - Top Mount

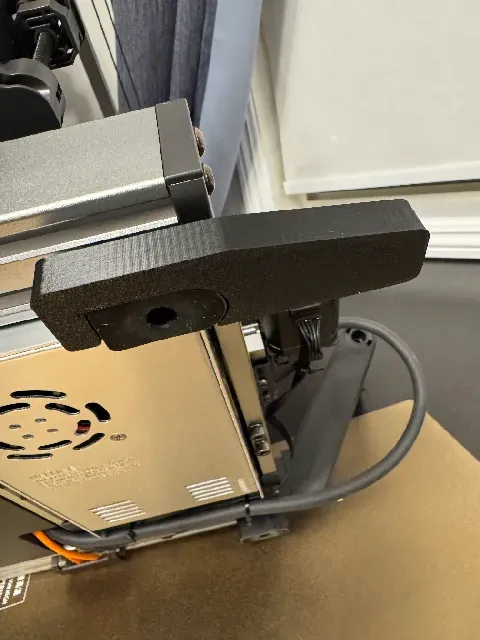

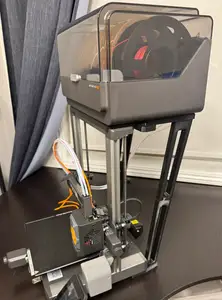

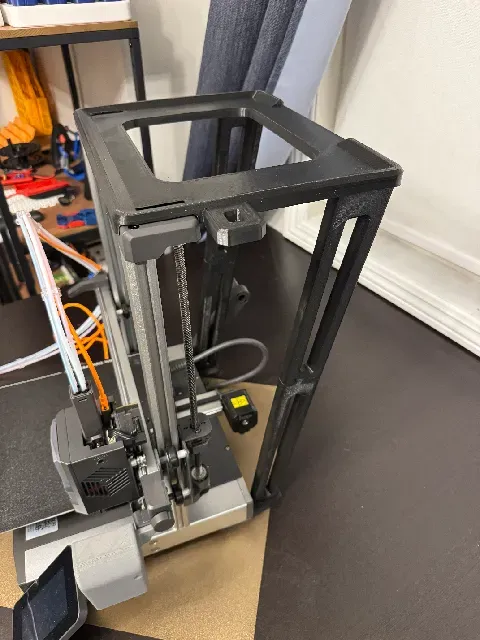

Simple design to put the Ace Pro over head. The Ace pro weight is shared with the printer on the front end and the table top on the back end. Very stable and out of the way. Shelf sits securely over the top beam and hugs the vertical beam corner covers. See pics. No need to screw or clamp anything.

Total height with lid closed: 720mm 28.35inches

Fully printable on the Kobra 3 bed.

Apox. 750g of filament.

A couple print options:

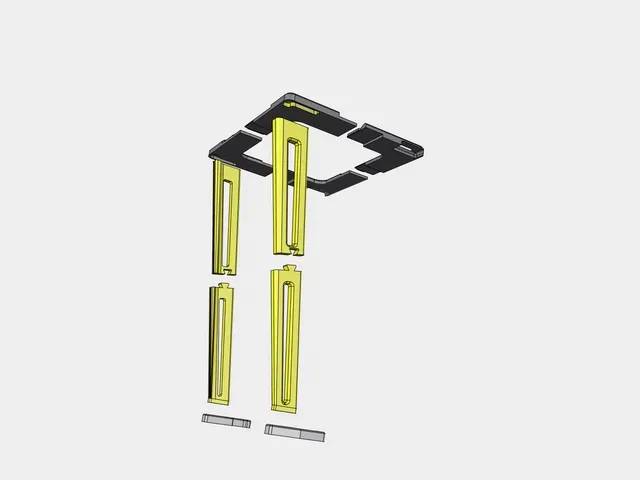

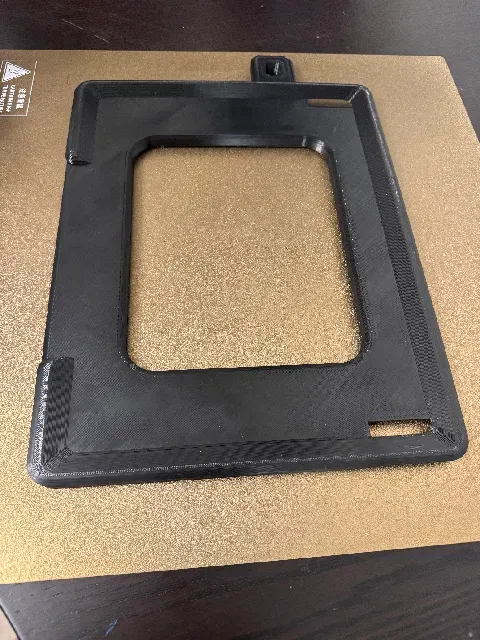

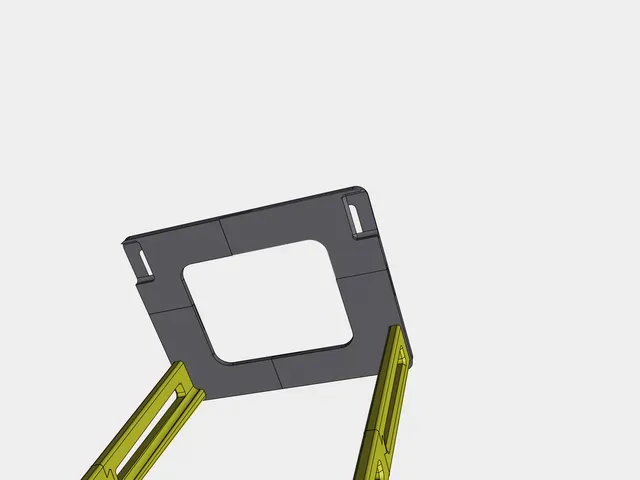

The main top plate is broken into four parts for smaller printers (glue required), and one part for larger printers (no glue required).

Also provided one set with bolt hose for those who want to assemble it in that way. Sized for M5 button top bolts.

Minimal supports needed for shelf.

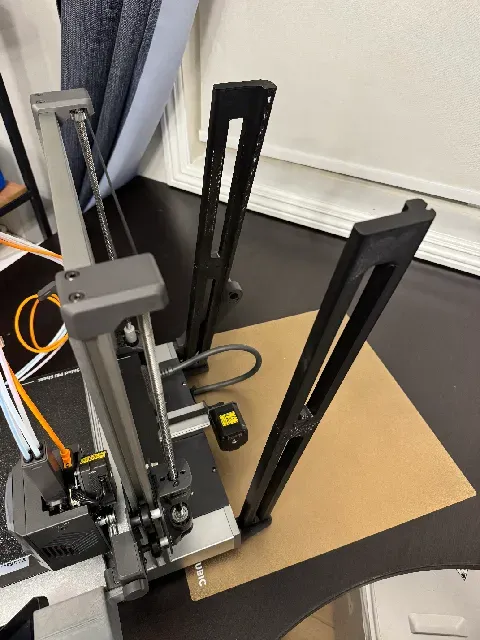

legs are cut into two parts (glue optional).

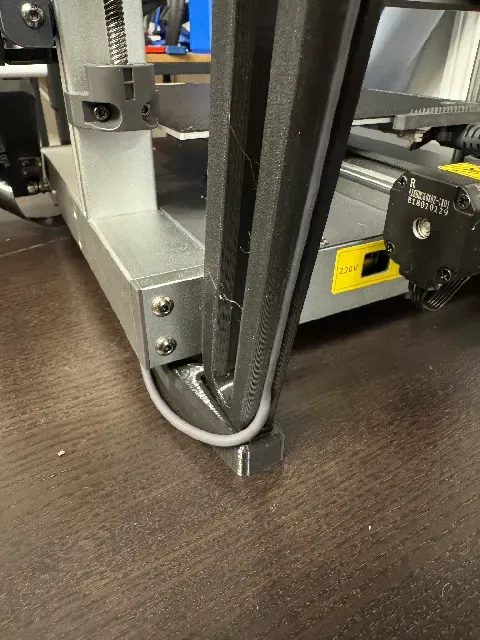

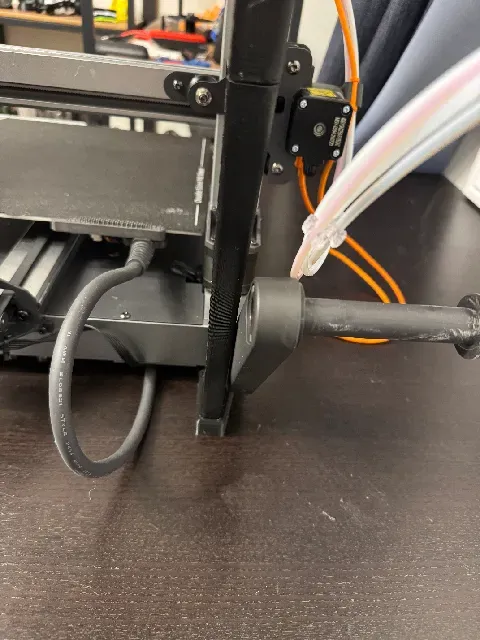

Data cord and power cord (two sizes) snaps into a grove on the back of both legs for awesome wire management.

There are two left leg options. Each has a different size power cord slot. One is 6.3mm wide, the other 7.6mm wide. Measure the ACE power cord before printing to ensure proper fit.

Print it strong. I was happy with 4 wall/top/bottom, 15% cubic infill.

Not print orientated. Print best orientation for your printer.

DO NOT LIFT PRINTER WITH ACE ON TOP!!! They are not a solid unit, sliding it around the table is fine, lifting it will cause your day to suck right quick.

STEP file attached - go nuts

All yours, have fun.

Post some makes, I love seeing your colour choices and set ups.
