Flashforge Adventurer 5M (AD5M) Wire Clips

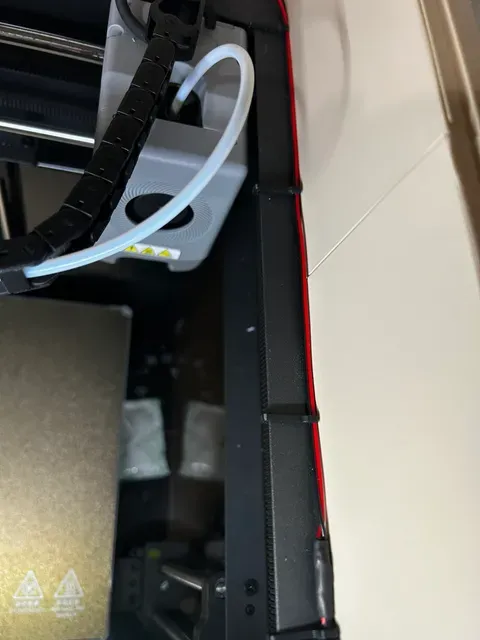

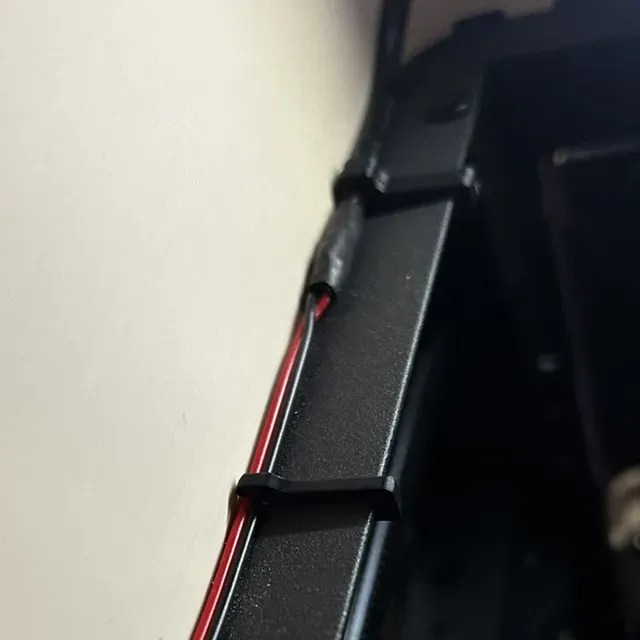

I was in need of basic cable management after installing Sniffynose 's AD5M LED Mod , for the dual 24V 22AWG wire I used for the LED strip / lightbar. The clips simply pinch the thin frame extrusions and hole the wires against the enclosure. I ran my wires on top of the frame but could just as easily be run underneath for more invisibility. A fully enclosed retainer could be easily added to the design, .f3d attached.

Files:

AD5M Wire Clip.stl - dual 22AWG

AD5M Wire Clip-large.stl - dual 16AWG+ or insulation

AD5M Wire Clip-short.stl - adjusted for the frame holes near the filament sensor, untested

Printing:

Print flat on side, no supports. Scale as needed.
