Raspberry Pi 2B/3B/4B/5B 19-inch Modular Rack Mount

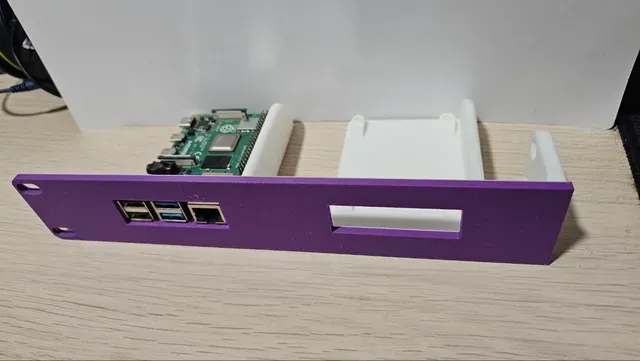

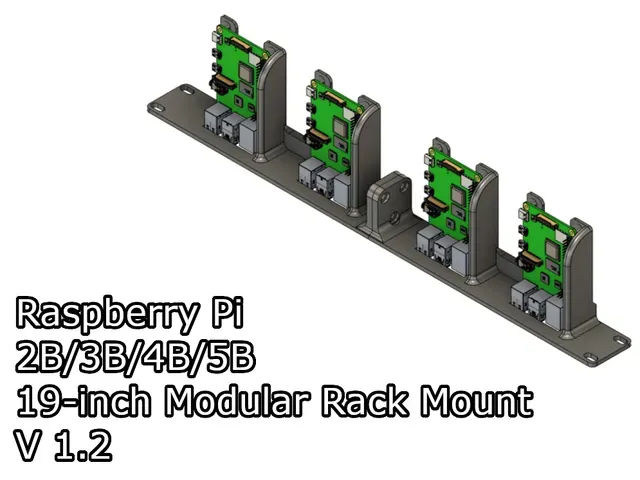

A modular, 2 part, 19-inch rack mount for the Raspberry Pi 2B, 3B, 4B and 5B devices.

This mount is part of a 19-inch modular rack mount system I designed, you can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Do you like my models? Consider buying me a coffee ;)

Updates

- 13 August 2025: I've included the version 1.2 of this model, with the following modifications: - Added a non thread insert variant of the model. - Added mounting holes all the way to the back, so you can also mount hats that require screws coming from below. - 09 Mar. 2025 : I've released Version 1.1 of this mount, with cutouts for the micro SD cards, making it easier to insert and remove them. I have also reinforced the mount, making it sturdier. Required parts

- 16x M2.5 thread inserts . - 16x M2.5 screws. - 3x M5 screws (Min size: 12mm, recommended size: 16mm). - 3x M5 hex nuts. Mount Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

- To assemble the parts, insert the 3 screws into the Right module. - Then align it with the Left module. - After that, insert the hex nuts in the screws, and using a screwdriver or allen key. - Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack. Pi Assembly instructions

- Insert the 8x M2.5 thread inserts into the mount. - Insert your Raspberry Pi into the mount. - Secure it with 4x M2.5 screws. - Repeat the process for the other Pi. Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Walls/Perimeters:

3.

Infill:

20% or more.

Filament:

Any.
