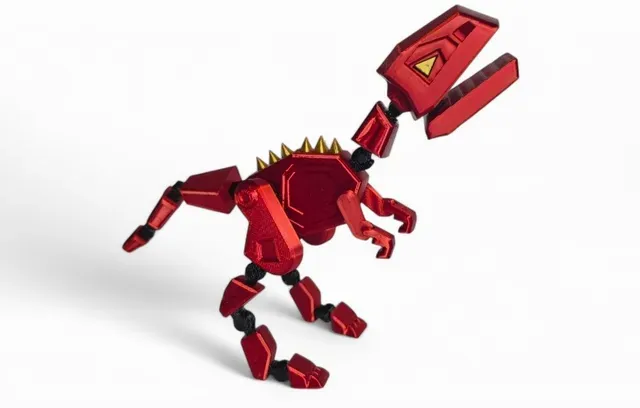

ROBOT DINOSAUR TOY (BETA)

DINO-ROBOT (T-REX) V1

Introducing the DINO-ROBOT. This one is based on the T-Rex

ADVICE:

JOINTS - PETG (Ideal for click joints)

BODY - PLA, PETG, ASA, ABS

WARNINGS:

At 200% scale the dino can become top heavy in the head area. Advice to stick with original scale.

This can be a tricky build depending on your filaments and machine. Calibration advised.

- In my mind, this is still a progressing model. I have tested the design under my conditions with my printer and materials. You may find some parts are tight or loose when inserting the joints. You may need to trim/scale or glue parts in place. As I develop the design I will look at more clickable and friendly multi printer/material designs. That said, please give me feedback on the print that will help make this better :) Thank you for Downloading.

- Please keep away from very small children. Small parts can be a choking hazard.

PRINT SETTINGS

Joints:

- PETG

- .1 - .2 LAYER HEIGHT

- Infil

- No supports

- 2 x walls

- infill 15% gyroid Keeping the weight down will help with standing the dino up without using his tail or stand

Body Parts

- PLA, PETG, ASA, ABS

- .1 - .2 LAYER HEIGHT

- Models are set in the most optimum position within the supplied files. Feel free to change

- 2 x walls

- infill 15% gyroid Keeping the weight down will help with standing the dino up without using his tail or stand

SCALING:

I Modeled this design and scaled it to 120% for the Stl files. You should be able to make it 80% of the current stl model with no issues. Tested at these scales.

ASSEMBLY

The assembly is pretty straightforward, But here are some images to help below.

Over a couple of days, I have noticed the joints loosen up a bit. This may be the PETG i am using. You may find it harder to stand him up without the stand. If you lock the leg joints out, it is easier to stand up. Or just use the stand ;)
