TOYO STEEL T-190 Toolbox Organizer Trays (Wowstick, Tools & Parts Storage)

TOYO STEEL T-190 Toolbox Organizer Trays

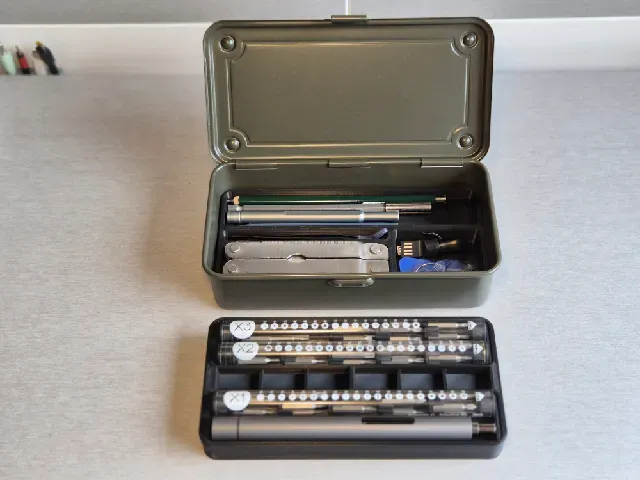

Designed custom organizer trays for the TOYO STEEL Trunk Toolbox (T-190 series) to efficiently store and organize tools, small parts, and accessories. These trays fit perfectly inside the toolbox and provide dedicated compartments for various repair tools.

Tray Configurations:

Bottom Trays (Two Variants)

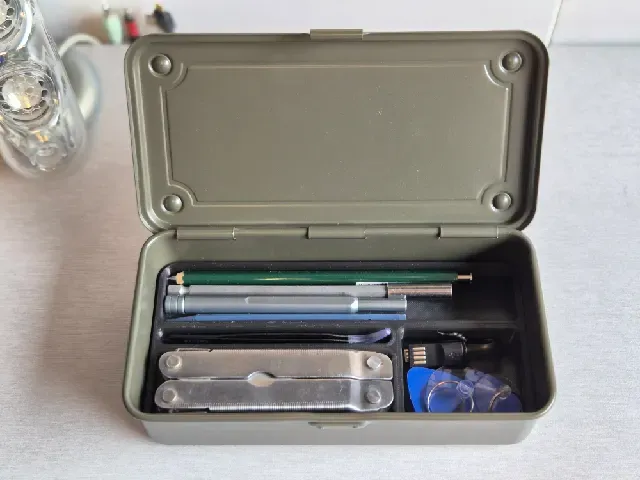

- Tool Organizer Tray: Holds tweezers, multitool pliers, pens/pencils, misc parts, or pry picks for device repair. - Screw Tray: Alternative bottom tray with multiple compartments for small screws and other tiny components. - Both bottom trays include small holes for 4mm diameter x 2mm height magnets to keep the tray secured inside the toolbox. Top Tray (Wowstick & Bits Organizer)

- Specifically designed for the Wowstick electric screwdriver and its bit storage cylinders. - Includes four small compartments for screws or miscellaneous items. - Requires supports on the bottom when printing (recommended: normal supports at 10% density to save filament and time). - Highly recommended to print with a brim for better bed adhesion. Print Settings:

- Orientation: Print all trays flat with the compartments facing up. - No ironing used. - Infill: 15% Gyroid - Walls: 3 - Top/Bottom Layers: 6 - Z Seam Alignment: Set to Sharpest Corner for the cleanest finish. - Adaptive Layer Height: Enabled (recommended for smooth fillets). - Layer Height: 0.16mm - Layer Height Range: 0.08mm – 0.2mm. Printing Details:

- Printer: Ender 3 (v1) - Filament: Elegoo Black PLA This setup ensures a perfect fit inside the TOYO T-190 toolbox while keeping everything neatly organized. Fusion 360 files are included for customization, so feel free to remix, improve, and post your makes!
