Modified Quietmode! Flashforge Adventurer 5M (AD5M) Back Panel w/ Buck Converter

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 102 Likes
  • 274 Downloads
  • 2 Makes
  • 3 Comments
  • 3 444 Views

Author:invintive

Published

Download on Printables

Description

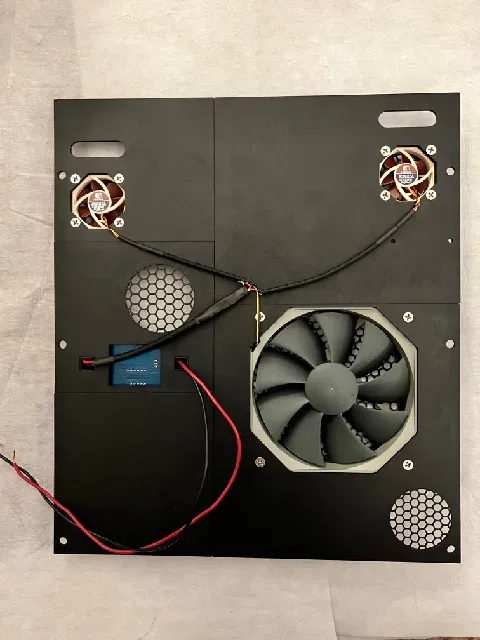

Hello fellow makers! I have added a case to the ”panel d” of the Flashforge Adventurer 5m Quietmode! Back panel that holds an LM2596 Buck Converter (with 56.5mm x 35mm pcb and integrated display). That way you can use cheaper 12v fans and adjust the speed.

https://www.printables.com/model/838021-quietmode-flashforge-adventurer-5m-ad5m-back-panel/comments

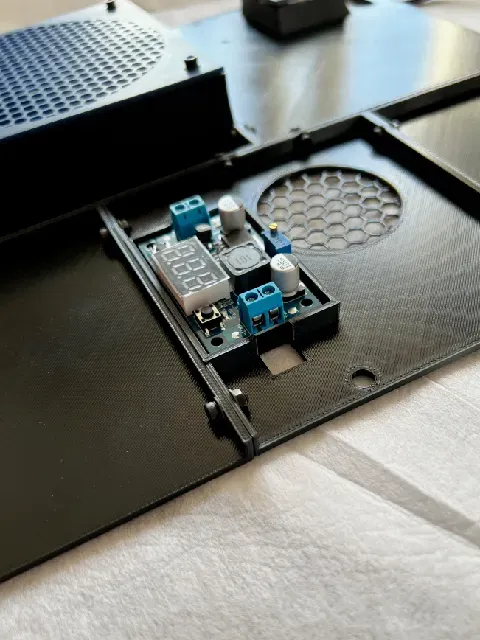

Both of these fit (HW-319-V6.0.1 printed on board/pcb measures approximately 56.5mm x 35mm):

https://a.co/d/6GfWJrW https://a.co/d/bmF5oaV

Case is secured with 4 M3x16mm screws that cut their own threads.

I’m a complete beginner and did all of the editing in orca slicer, so it’s probably not perfect, but worked good for me.

I have now included the original panel-d with a switch as well as the incorporated buck converter case.

Happy printing all!
