Ender 3 V2 X-Axis linear rail bracket

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STLSTEP
  • 9 Likes
  • 53 Downloads
  • 0 Makes
  • 0 Comments
  • 429 Views

Author:craftworks.tech

Published

Download on Printables

Description

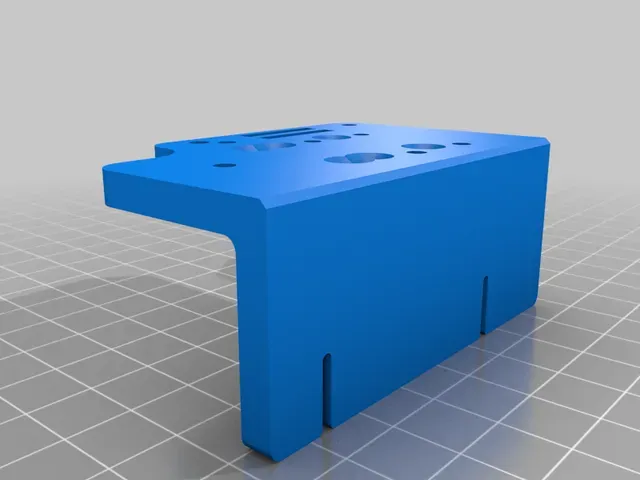

Simple bracket to convert the X axis of an Ender 3 V2 to linear rail for stock hotend (MK8).

You will only need

- this bracket

- one 300mm linear rail linear rails MGN12C (15mm x 20mm) or MGN12H (20mm x 20mm)

- 4x M3 countersunk screws

- 2x or 4x M3 threaded standoffs

Works great with @whistleblower's Ender 3 V2 Fan Duct for 5015 Part Cooling Fan with BLTouch Mount https://www.thingiverse.com/thing:4666359

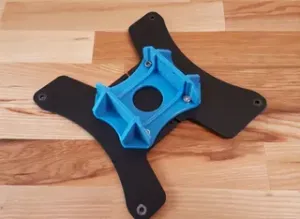

Good additon to my Ender 3 V2 Y-Axis dual rail bracket https://www.thingiverse.com/thing:4897777

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

**Rafts:**

No

Supports: No

**Resolution:**

0.2 or 0.3

Infill: 38

**Filament:** Geetech PETG black Notes:

4 wall lines recommended

PLA not recommended due to hotend temperatures

Category: 3D Printer Parts
