Heltec LoRa32 V3 Module Case with 1300mAh Battery

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 18 Likes
  • 135 Downloads
  • 1 Makes
  • 4 Comments
  • 1 123 Views

Author:Vlaad

Published

Download on Printables

Description

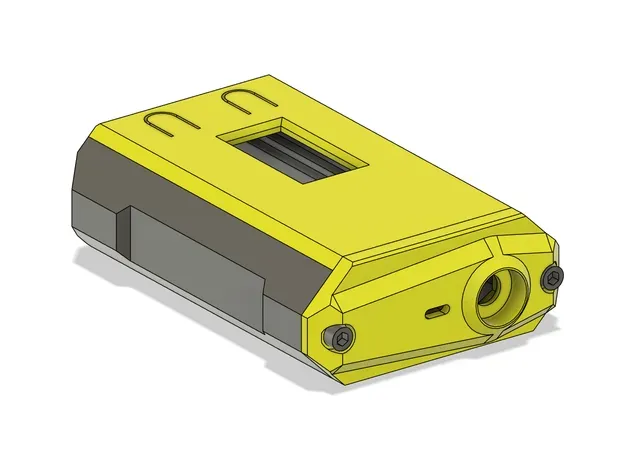

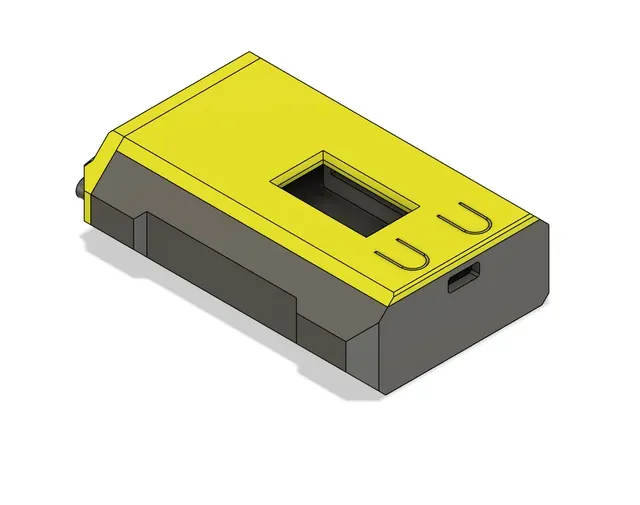

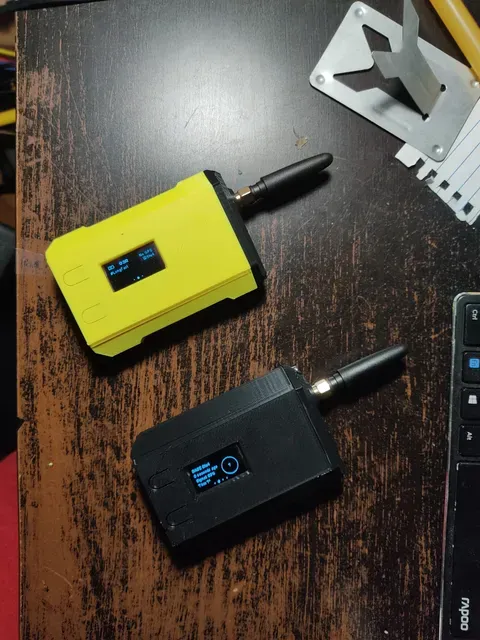

This 3D printable case is designed for the LoRa32 module (ESP32 with LoRa and OLED display) and includes space for a 1300mAh Li-Ion battery . The design offers protection and portability, making it ideal for outdoor or mobile IoT projects.

Features:

Cutouts for USB port, antenna, and OLED screen

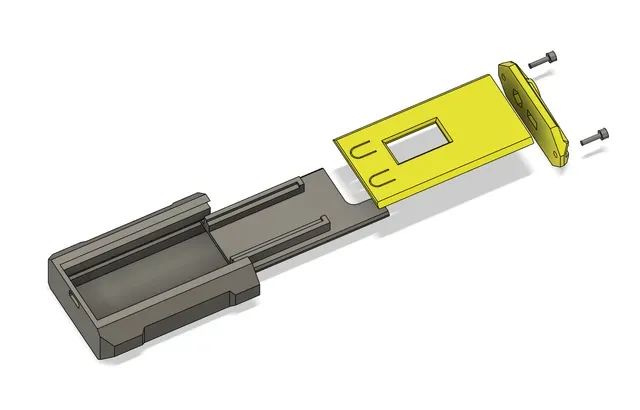

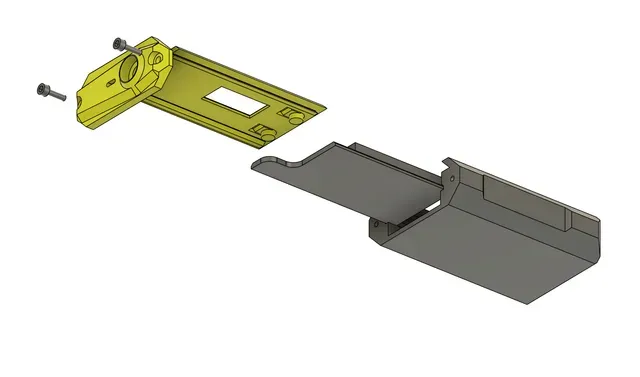

Internal mounting space for the module and battery (battery bay 35x70x7mm)

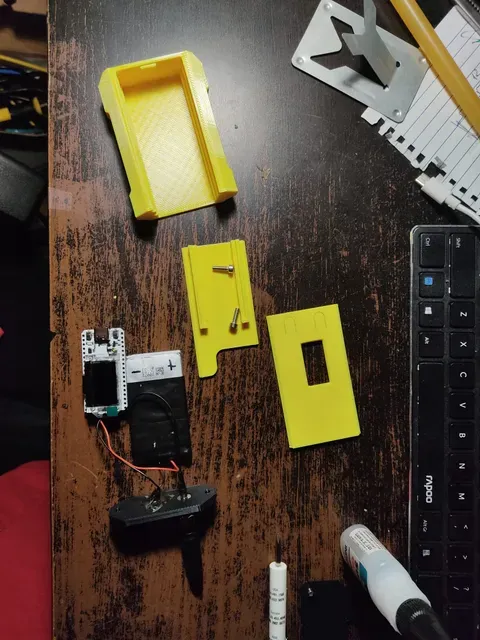

Recommended parts:

LoRa32 v3.0

1300mAh Li-Ion battery

2 x M3x10mm screws

SS12D00 on/off mini slide switch 3pin 5mm

Printing settings used:

Nozzle: 0.6 mm

Infill: 30%

Material: PLA

Supports: Not required (with proper orientation)

Recommended orientation: print with the bottom of the case on the bed
