Heat Insert Press | Linear Rail & Key-Bak

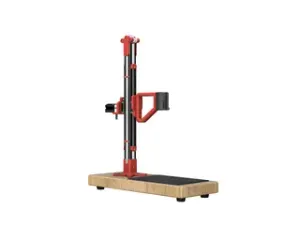

Easy to build Heat Insert Press with an MGN9C linear rail and a key-bak! Heres the video how the press works and how it is build:

Get the key-back parts here and the top stop block here (rail_stop x4.stl - you only need one).

BOM:

Soldering Iron & Heat Insert Tips ( Amazon *) Soldering Iron ( AliExpress *) Heat Insert Tips ( AliExpress *)

2020 bracket 1x 2020 t-slot aluminum profile 30cm ( Amazon or AliExpress *) 3x m3x6 3x m3 t nut 4x m4x10

linear rail 1x mgn9c linear rail 20 cm ( Amazon or AliExpess *) 4x m3x8 4x m3 t nut

pulley bracket 4x f623zz m3x10x4 flanged bearing ( Amazon or AliExpress *) 2x m3x25 2x m3x6 2x m3 t nut 4x m3x4.6x3 insert

key bak 1x KEY-BAK S48 ( Amazon *) 2x m3x8 2x m3 t nut 2x m3x4.6x3 insert

front bracket 4x m3x6 3x m3x4.6x4 insert

rail stops 2x m3x6 2x m3 t nut

arm 2x m3x6 3x m3x8 2x m3x4.6x3 insert

total bolts/nuts/inserts ( Amazon *) 13x m3x6 ( AliExpress *) 9x m3x8 2x m3x25 13x m3 t-nut ( Amazon or AliExpress *) 11x m3x4.6x3 insert ( Amazon or AliExpress *)
