Magnetic Panel Clips Voron 2.4

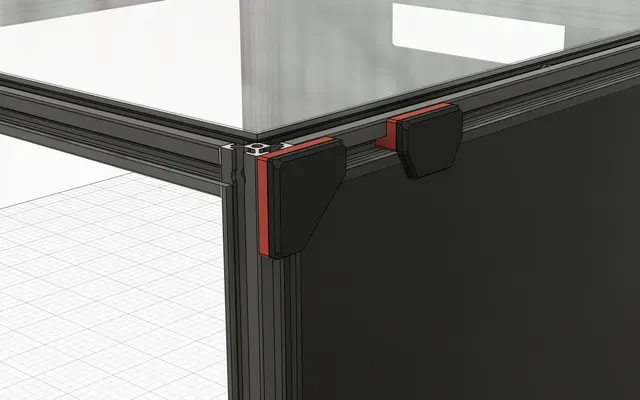

This part is designed to hold the Voron side, back, and top panels in place. They look clean and are easy to remove without blocking the panels.

They are easy to print and assemble.

There are two variations:

- For a full panel thickness of 4 mm, which means a 3 mm panel and a 1 mm seal, and is used for the top and back panels. - For a 6 mm thickness, which means a 3 mm panel and a 3 mm seal, and is used for the side panels.

I used the recommended printer settings for the Voron and printed it with ASA. Feel free to experiment and leave a comment!

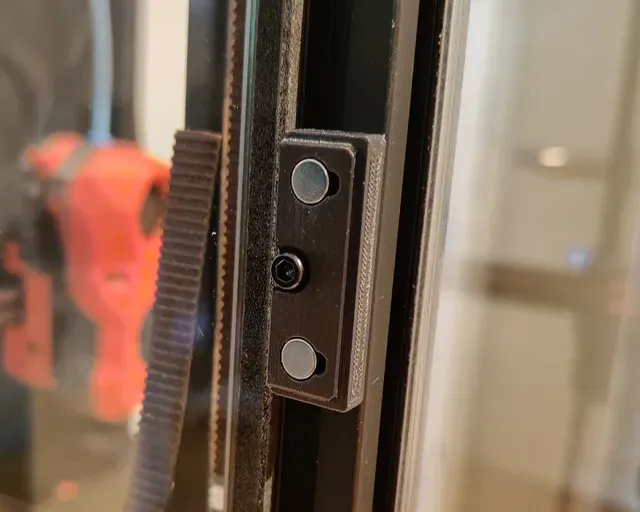

Here's another tip about the magnets. It's easier if you print a tool to insert the magnets yourself. Also, make sure you glue and insert them all in the same orientation. That way, you can use all the clips in different combinations later on.

BOM

- 4mm Thickness - Corner - 2x M3x8 SHCS - 2x M3 T-Nut - 6x 6x3mm Magnet - Side - 1x M3x8 SHCS - 1x M3 T-Nut - 4x 6x3mm Magnet - 6mm Thickness - Corner - 2x M3x10 SHCS - 2x M3 T-Nut - 6x 6x3mm Magnet - Side - 1x M3x10 SHCS - 1x M3 T-Nut - 4x 6x3mm Magnet
