Brushless Motor Mount for Flying Wings (9x9mm or 12x12mm)

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-ND
Non-commercial use only, with credit and no modified versions.
Formats
3MF
  • 2 Likes
  • 25 Downloads
  • 0 Makes
  • 0 Comments
  • 170 Views

Author:Stelzenbach

Published

Download on Printables

Description

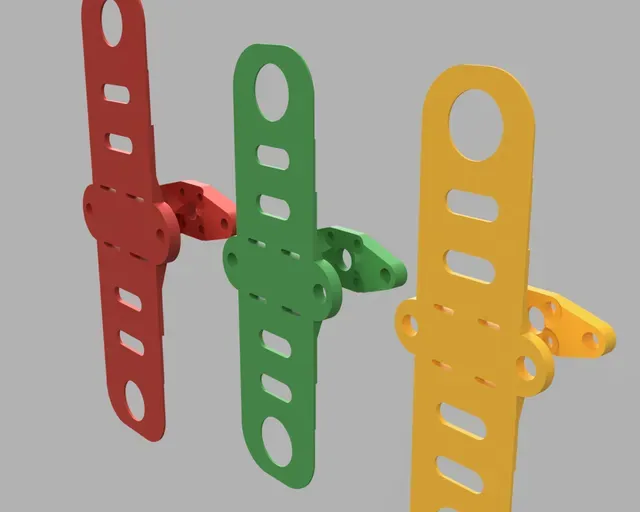

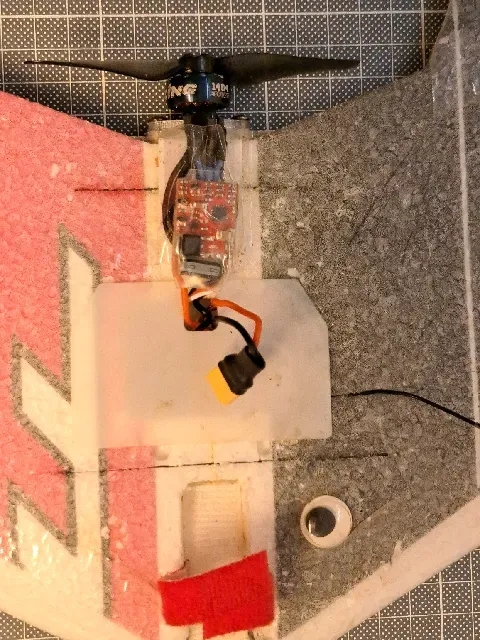

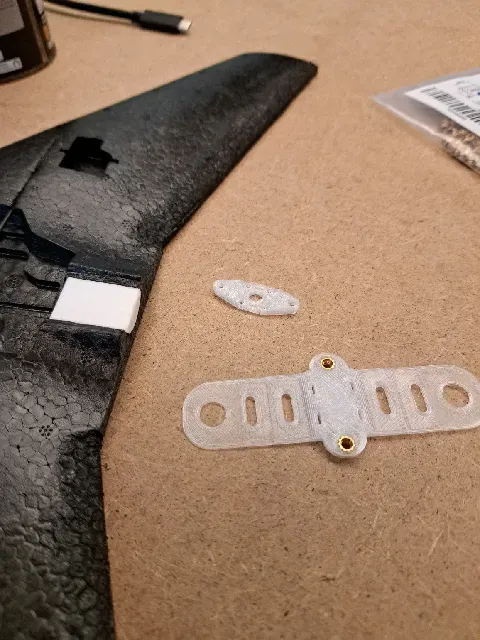

These brushless motor mounts were designed for flying wings to attach common drone motors.

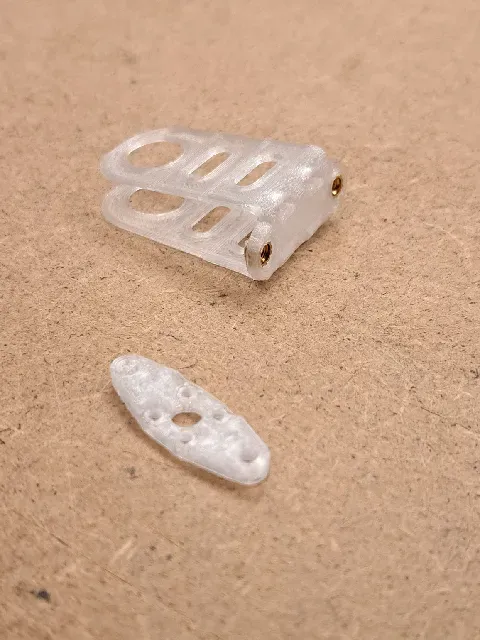

There are three versions, differing in motor size. The mounts must be printed flat and then bent using a torch lighter.This requires some practice, but ensures the layer lines are correctly oriented.

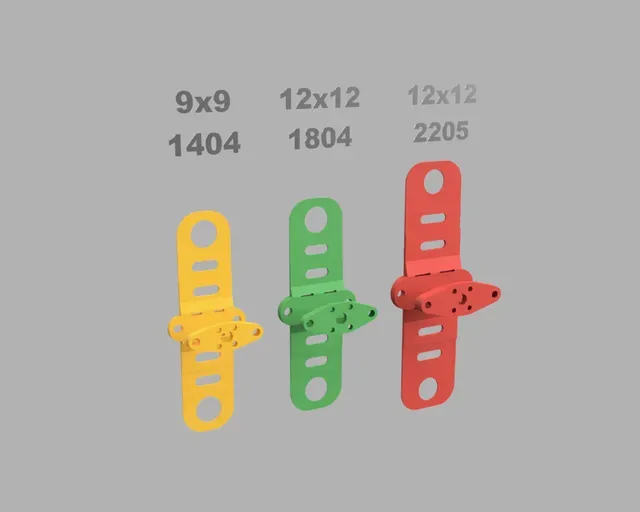

1404 Version; max 1404 Motor, 9x9mm Hole pattern

1808 Version; max 1808 Motor, 9x9mm Hole pattern

2205 Version; max 2205 Motor, 12x12mm Hole pattern

For material, I recommend at least PETG, a PC blend, or PA.

As accessories, you'll need two short M3 heat-set inserts from cnckitchen.

Enjoy printing!

I am open to your suggestions and feedback and look forward to seeing your 3D creations.
