Solder Fume Exhaust 80mm Fan to 100mm duct /tube
Model details
- Platform
Printables
- Price
- Free
- License
- see the platform page
- The author sets the terms — check them on the model page before printing for sale.
- Formats
- STL
- 136 Likes
- 275 Downloads
- 2 Makes
- 6 Comments
- 1 794 Views
Description
Time for fresh air!

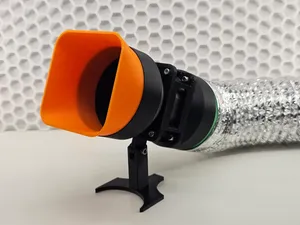

Take a powerful 80mm fan and use it as:

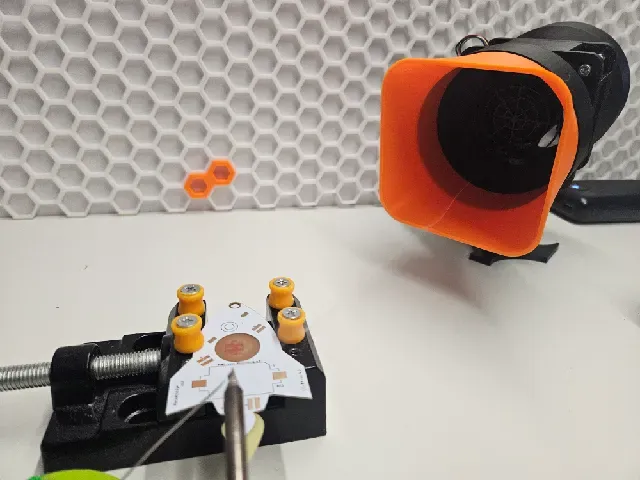

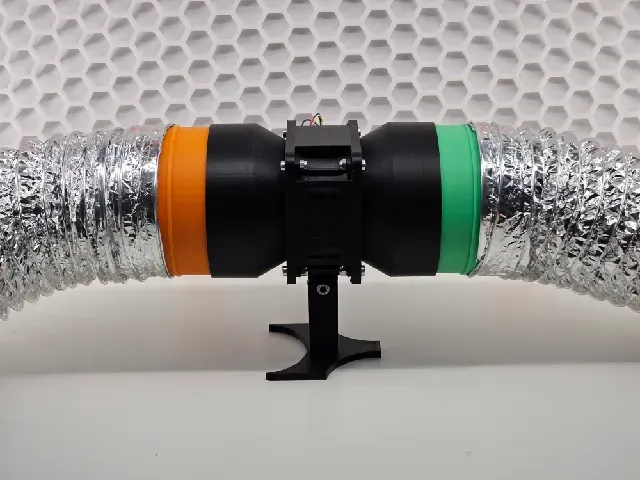

- Solder fume / air exhaust fan - Inline fan - Bring in fresh air by reversing the fan The design allows to attach the 100mm tube connectors at both sides to use it as inline fan. For this usecase print ConnectorTube.stl 2x
Print:
- 5 perimeters

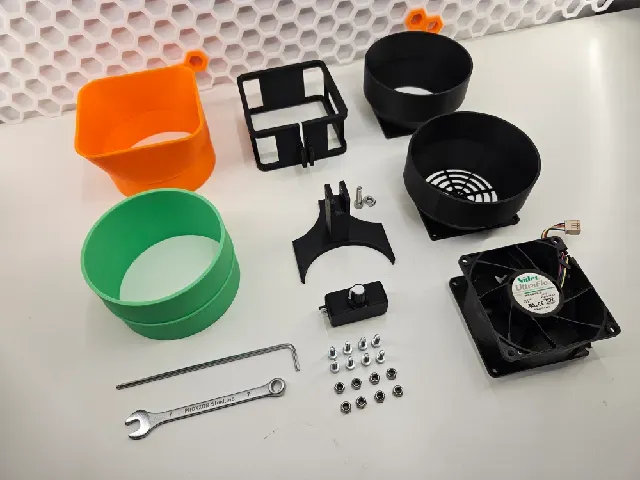

Parts need:

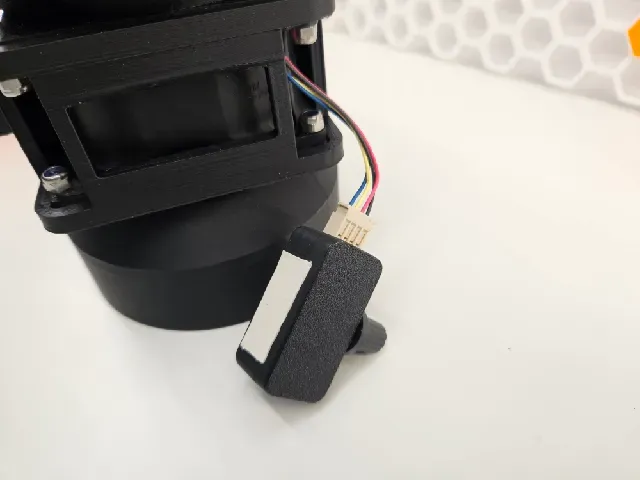

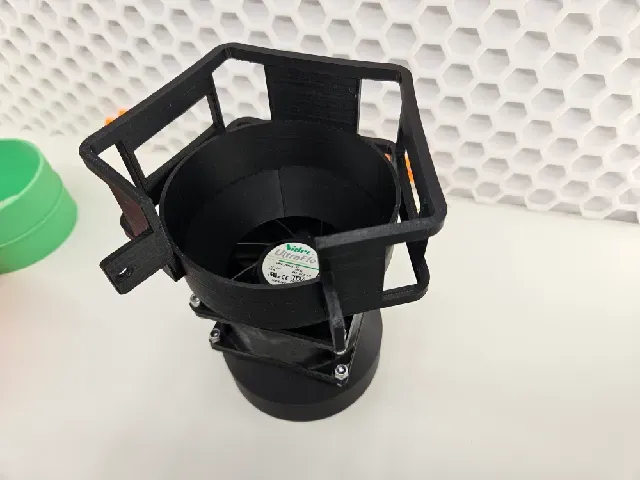

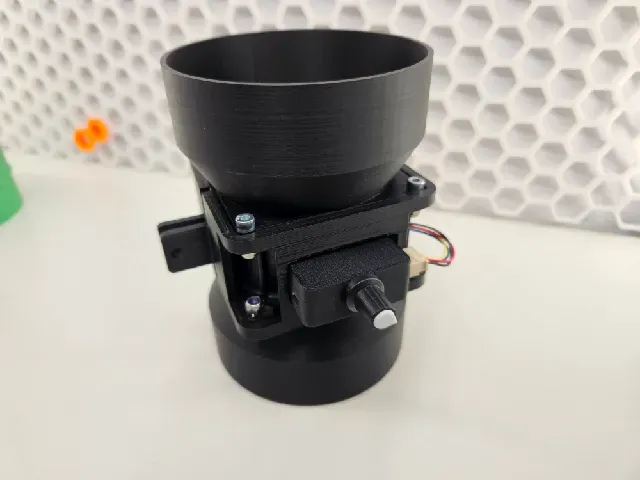

- Fan 80x80x38mm for example Nidec Ultraflow Fan 80mm (V80E12BHA5-57) 12V / 0.6A -… or similar - DC12V PWM Speed Controller 4-Pin Fan Speed Controller Type-C USB (Aliexpress aprx.. 5,00 EUR) - 20x Screw M4x14 + Nuts - 1x Screw M5x20 + Nuts - Flexible Tube 100mm (4'') and clamp or cable tie to fix it at the connector WARNING: Never run the fan without proper cover / fan grill - even when you think you know what you are doing! This is stronger than you might think … believe me…
Disclaimer:
Pls check the documentation of your fan / speed controller before connecting. I do not take any liablity for damages or injuries. Build and use at your own risk. The linked products and pages are for reference only. I dont get paid for from the owners.
