Fan 80mm holder DIN

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
STL
  • 2 Likes
  • 15 Downloads
  • 1 Makes
  • 1 Comments
  • 81 Views

Author:Ondřej Hladík

Published

Download on Printables

Description

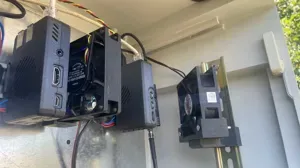

Holder for 80mm FAN on DIN rail. The FAN holder is available in two variants of internal width (20.5 and 26 mm). The DIN rail holder is also available in two variants (Direct and Angular 45°). To connect the DIN holder and the FAN holder, you need two M3x8mm screws, and to secure the FAN in the holder, you need two M4 screws (according to the width of the holder) and nuts.

Printing without supports, Infill: 15%.
