VORON 2.4/Trident Stealth Skirts - JST Splitter Side Fans

This is a modified Fan module for PrintStructor 's Stealth Skirts that ads an integrated JST fan splitter.

Goal of this mod is to offer a clean cable management solution that also allows for easy maintenance.

To achieve this, the module integrates a fan splitter that gets covered and hidden behind the front grill during assembly.

This allows the fan module to be wired as a subassembly prior to installation into the printer,

which makes installation and maintenance very comfortable, as only one connector is needed to connect to the printer, and the submodule can very easily be installer or removed as a whole.

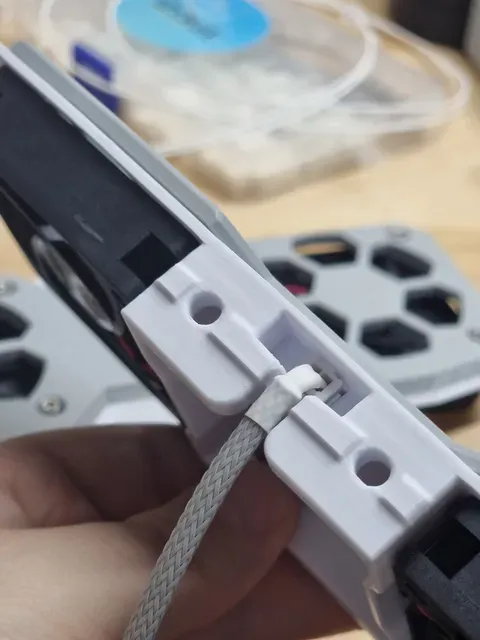

The main connector is placed towards the extrusion and therefore also hidden after assembly,

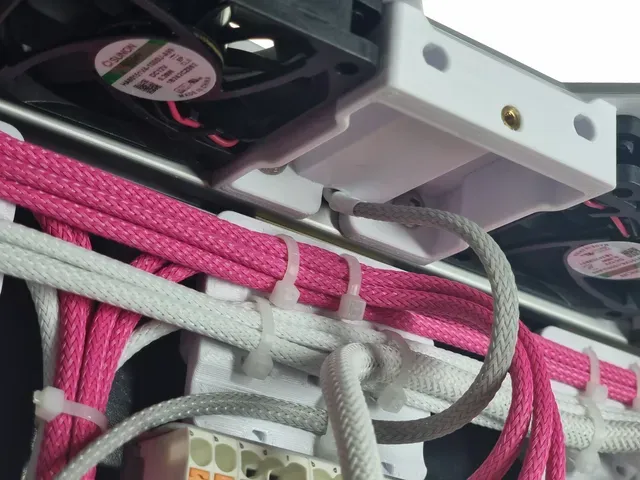

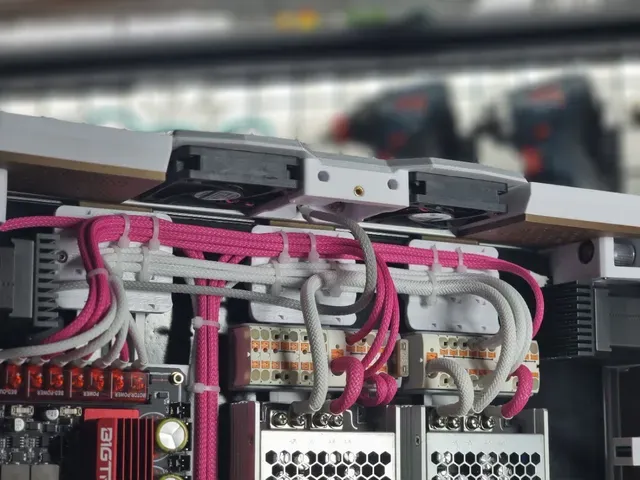

which creates a clean appearance that only shows a single wire exiting the fan module.

The Voron Logo insert has also been changed to better self align in the fan grill and can be installed without glue.

Required hardware (per side):

3x JST 2.54mm Connectors (Voron standard)

8x M3x10mm BHCS/SHCS

2x M5x10mm BHCS/SHCS

9x M3x5x4 Heat Insert (Voron standard)
