Moon Lamp

hanging Moon Lamp variant

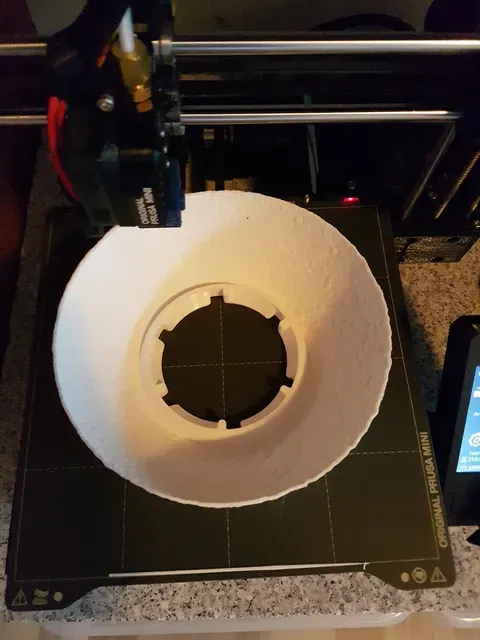

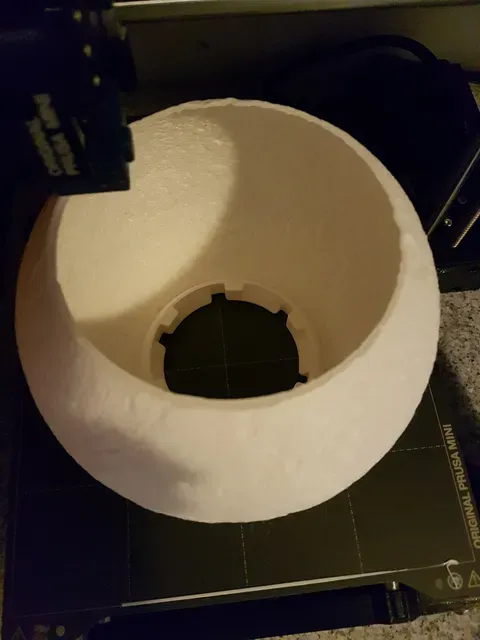

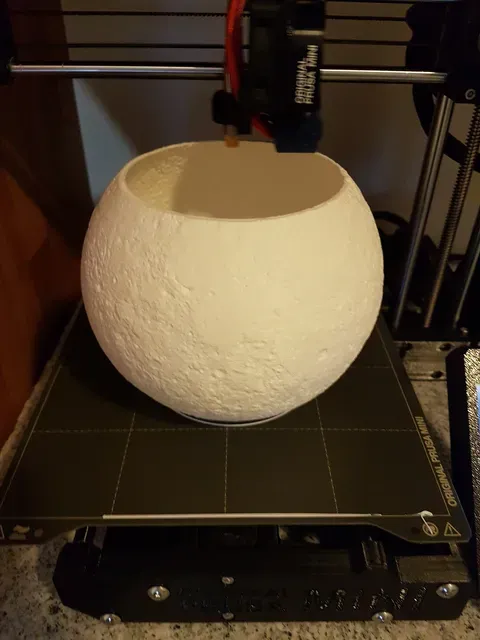

Moon Globe

3 sizes available: Ø 140mm / Ø 175mm / Ø 200mm (Ø200mm version is not printable on the MINI) Hole for light bulb, diameter: 60 mm

Print instructions

Infill: 100 % (The 3D model is a hollow object, infill 100% means print a solid shell) Layer: 0,2 mm Supports: No

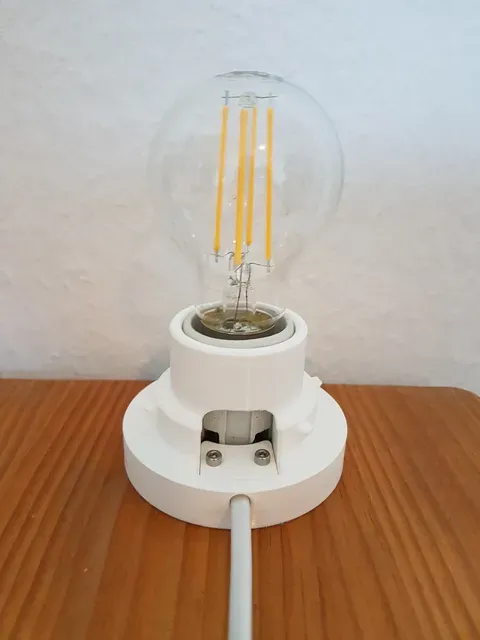

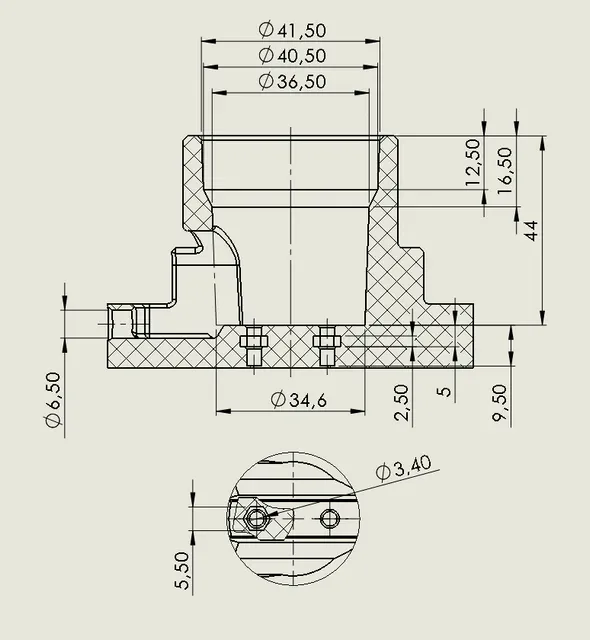

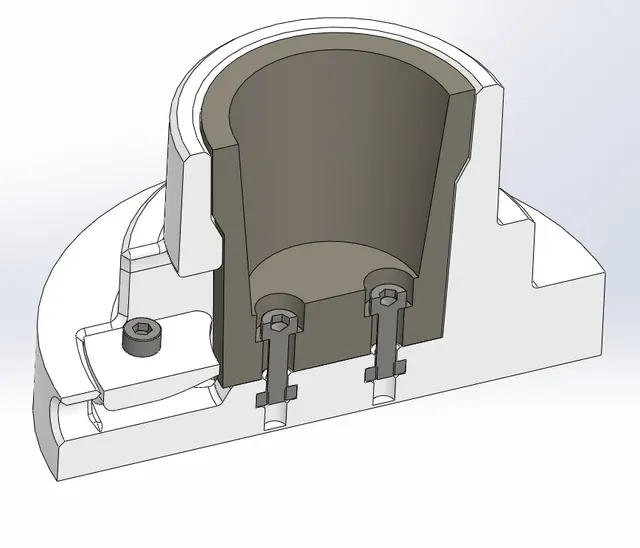

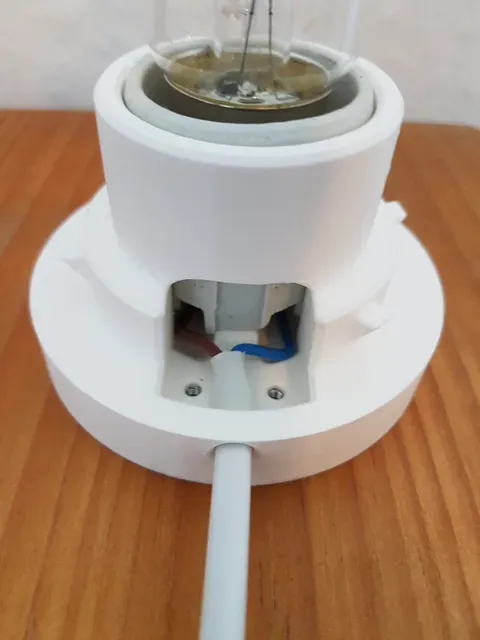

Base

for E27 Light bulbs

Print instructions

Infill: 5% - 10% Layer: 0,2 mm Supports: No

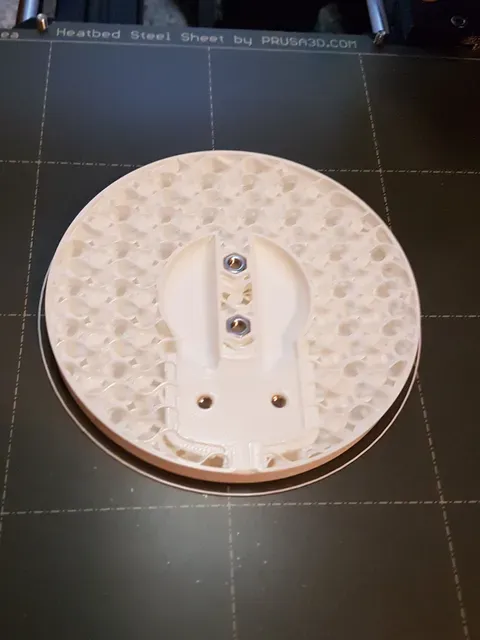

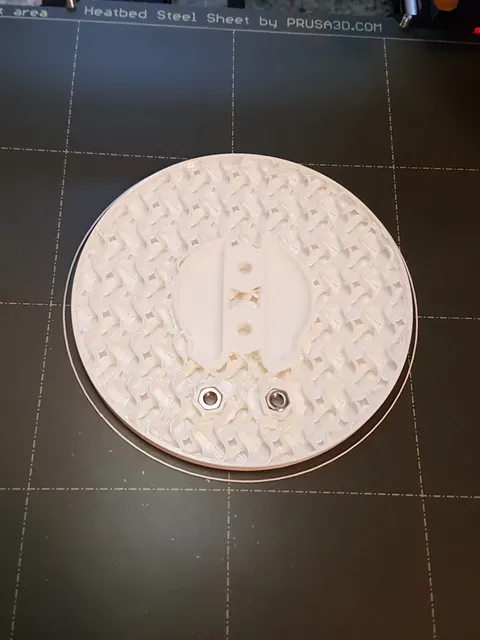

The print must be paused twice to insert the M3 Nuts (check Photos). First pause after 5mm, second pause after 7,6mm.

The pause is already setup in the 3mf and gcode files.

Strain Relief

Print instructions

Infill: 20% Honey Comb Layer: 0,15 mm Supports: No

Additional required parts:

4x M3 Nut

4x M3x12 Screw

1x E27 Ceramic Socket Bulb Holder, something like this

1x Power Cord, something like this or that

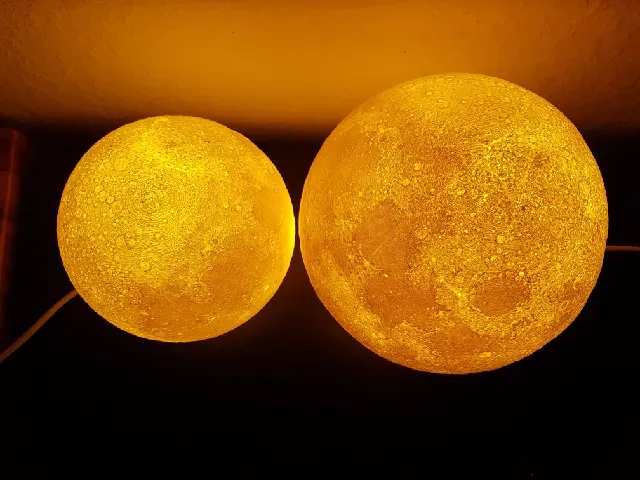

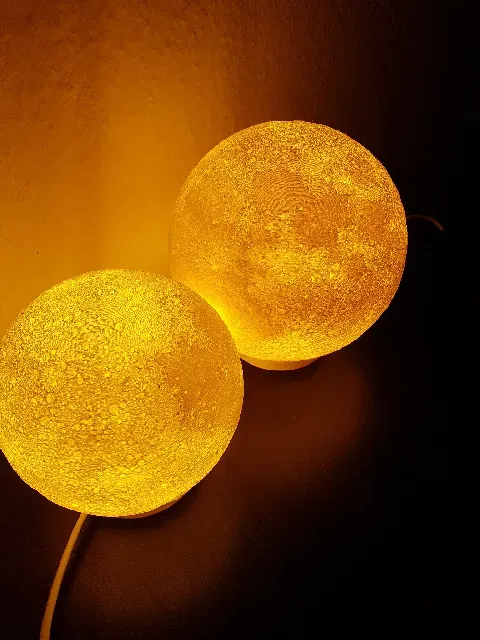

The picture is taken with a warm white light bulb, for a picture with a cold white light bulb please check the hanging Moon Lamp variant

Credit for the Moon Lithophane goes to u/moononournation: https://www.thingiverse.com/thing:4102658/files
