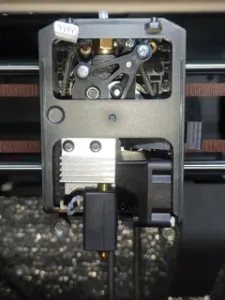

Constellation Extruder for Elegoo Centauri Carbon + TZ hotends

Description

Fully tested scratch design inspired by the Sherpa mini -inspired design! This extruder replaces the stock centauri carbon extruder and allows use of a Bambu Lab clone hotends with swappable nozzles (commonly sold as TZ2.0, TZ3.0, TZ4.0 etc) as well as any X1C-compatible hotend.

This gets you:

- No more bent nozzles! Unlike the CC hotend TZ2.0-4.0 have supported heatblocks that are more robust

- A 23% weight reduction in the extruder. (66.9 g for the stock extruder vs 51 g for the constellation HF) TZ hotends are also 12g lighter than the CC hotend

- More easily available replacement parts

- Standard V6 nozzles (on constellation HF and SF)

- Ability to do revo-like cold swaps (on constellation CS)

- Better access to the extruder to clear clogs

Why the name and render color scheme? It fits Elegoo's celestial object nomeclature and the screw pattern reminds me of a constellation.

V2.1: Now with CANVAS compatible versions of CS and HF now available! Constellation SF has been deprecated due to low demand. Documentation is being revised and the CANVAS versions may need a small amount of manual support on the multiplexer mount and filament detector hole. Other improvements:

- significantly better mounting point alignment with carriage

- completely revised pneumatic fitting geometry that should eliminate pullout issues.- Note: you must remove the rubber sealing ring on the bottom of the ECAS fitting now.

- Wear between tensioner gear and wall now fixed.

Versions

There are three version which have all been tested as of 9/17/25:

- Constellation HF: A high flow system using TZ1.0-3.0 hotends, a melt zone extender, and a V6 nozzle. Currently tested up to 42 mm^3 flow with PLA+ before underextruding (30% more than stock!). Total cost $25-35

- Constellation SF: A low cost high flexibility standard flow system using TZ1.0-3.0 hotends, a V6 nozzle, and no melt zone extender. total cost $15-25. DEPRECATED

- Constellation CS: A standard flow system that is primarily aimed at TZ4.0 hotends that will allow revo-like cold nozzle swaps. This version is also compatible with any hotend that can be used on a Bambu Lab X1C, P1S, P1P etc . Total Cost $25-35.

BOM

For The base components for all three versions are as follows.

- The parts from the stock extruder (gears, pins, filament cutter parts, etc) For instructions on removal follow this guide to step 10

- a bambu clone hotend

- 2 M3x6 BHCS

- 2 M3x8 BHCS

- 3 M3x16 BHCS

- 1 M3x20 BHCS

- 2 M3x24 BHCS

- 10 M3x4mm longx5mm OD (voron standard size) heatset inserts

- preferably the bambu hotend shoulder screws, although the stock centauri hotend mounting screws, two M3x14 BHCS, or whatever is included with your TZ hotend. See notes below*

- I highly recommend buying extra MR84 bearings for the drive gear. the bearings on my extruder housing were very stuck, and unless you know what you are doing you can damage them during removal

- ECAS04 Bowden connector.

Additional parts specific to For Constellation HF:

- A melt zone extender such as the trianglelabs MZE

Additional parts specific to For Constellation SF and CS:

- 1 extra heatset insert

- 1 extra M3x24 BHCS.

- 2 m2.5 screws, 4-6 mm long, to fix the hotend fan duct to the hotend.

* Real bambu hotend mount screws are partially threaded M3 with a 3.17 (1/8") nonthreaded region rather than a more standard 3.0 mm, the bore on TZ hotends is the same 3.2 mm as on OEM bambu hotends but the provided screws are standard 3mm bore, so there is a bit of slop unless you use screws from bambu. If you want to you can get a tighter fit by wrapping the nonthreaded portion of the screw with 1-3 turns of Kapton tape.

The step file includes locations for screws and heatset inserts. If you aren't sure how to put it together follow the step file (the HF version has accurate screw lengths etc), or refer the the sherpa mini build instructions which is very similar. I am in the process of preparing an assembly manual.
