RatRig V-Core 4 Touchscreen Display Mount
RatRig V-Core 4 Touchscreen Display Mount — Image 2 of 3

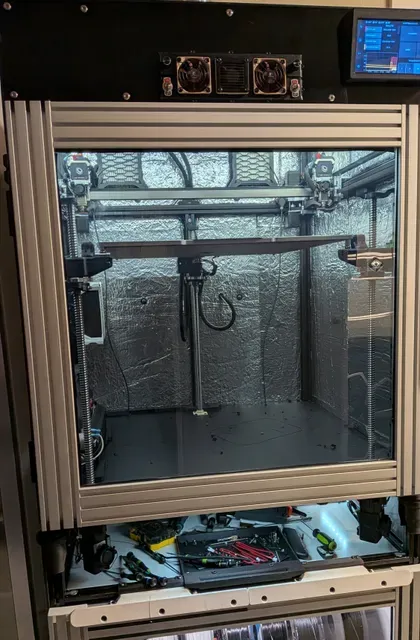

RatRig V-Core 4 Touchscreen Display Mount — Image 3 of 3
3D model · Printables

RatRig V-Core 4 Touchscreen Display Mount

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEP
  • 1 Likes
  • 3 Downloads
  • 0 Makes
  • 0 Comments
  • 163 Views

Author:RM S

Published

Download on Printables

Description

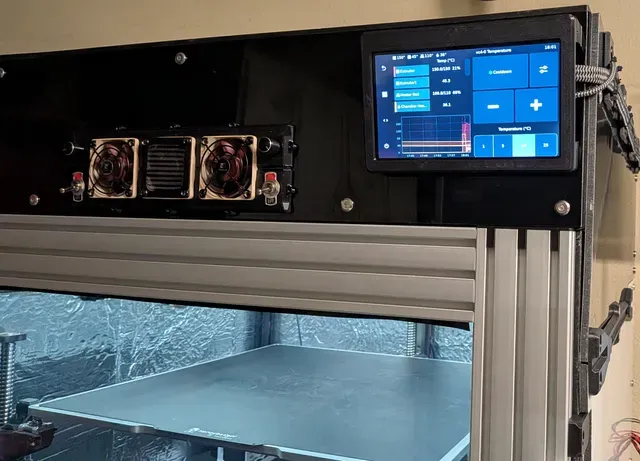

Ratrig V-Core 4 with a door on the front panel instead of the all clear front paneling seems like it's missing something without a display, so mounted a 7" HDMI touchscreen. This one is for the BigTreeTech HDMI7 (tried to insert a link but seems like can't be done here) but should be adaptable to any one or modified to work with the 5" on. There are 2 version, on with a 5 degree tilt and the other with a 10 degree tilt. The printed model is the 10 degree type.

I also created some cable routing mounts meant for the HDMI and USB cables that are required for this particular display to work. Will add those when I get chance.4
