Gazelle bicycle mudguard fastening clip / spatbord klem
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY
- Print, modify and use commercially — credit the author.
- Formats
- STL3MFF3DSTEPGCODE
- 20 Likes
- 57 Downloads
- 0 Makes
- 0 Comments
- 540 Views
Description

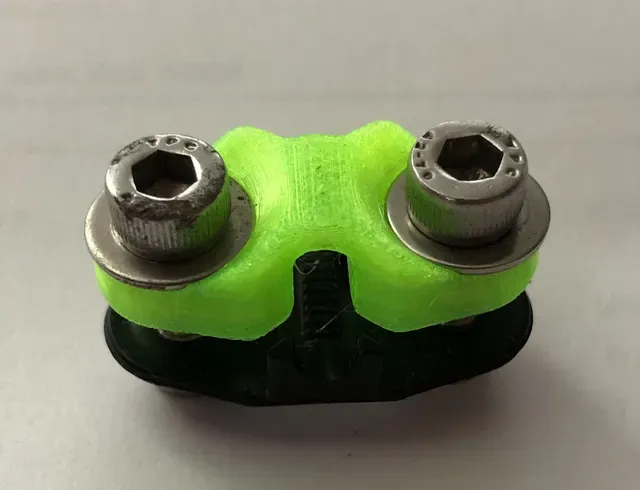

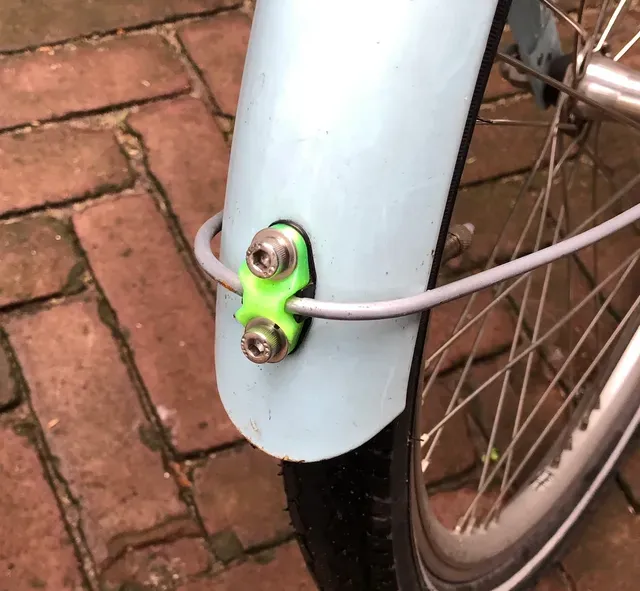

This part replaces the top part of a mudguard holder on some models of Gazelle (children) bikes. I hope this helps for someone.

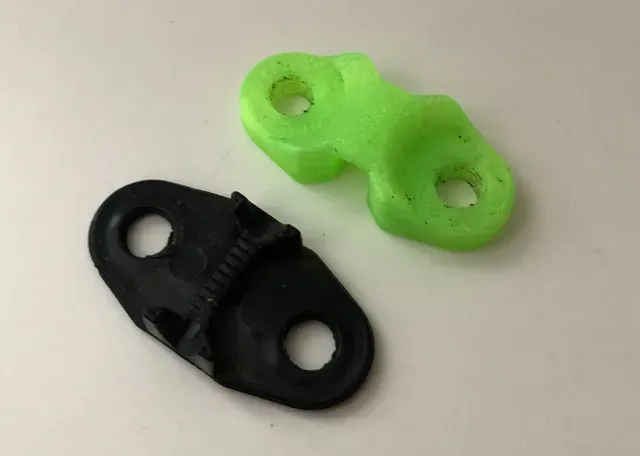

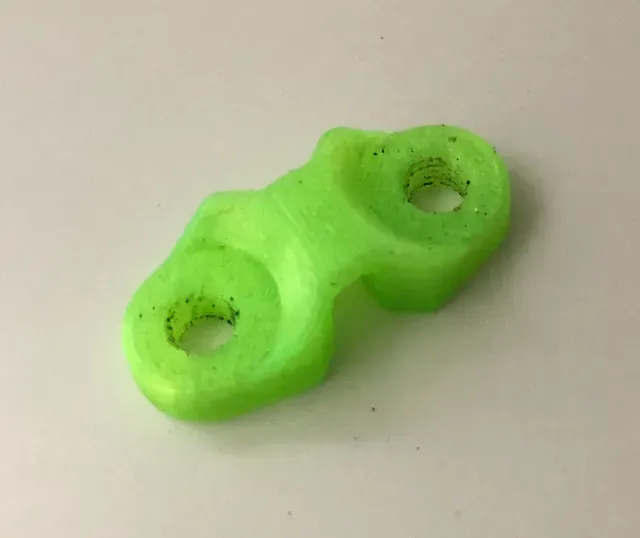

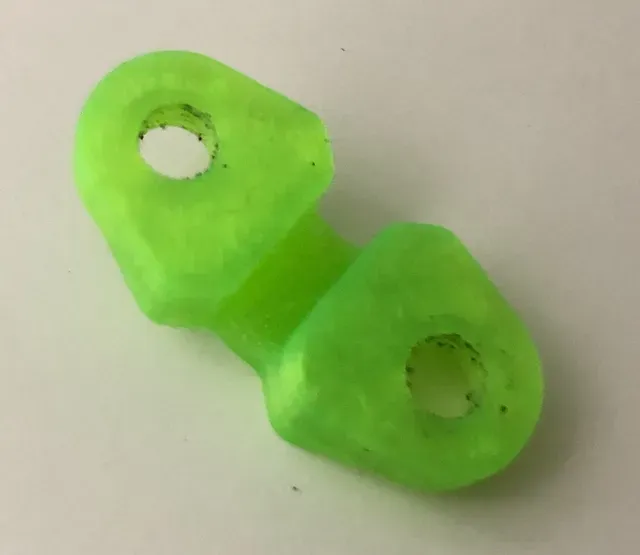

This is only the upper part. The part most likely to break. Included is the Fusion360 archive to help you get started if you need the base as well (black part in pictures).
Technical detail summary, see technical drawing for details:
- Bolts are M5 - Bolts holes are 21mm apart - Guard wire is 4mm (the wire held in place by this top part) Update: added step file.
p.s. I am curious if anyone used this part, please leave a comment.
