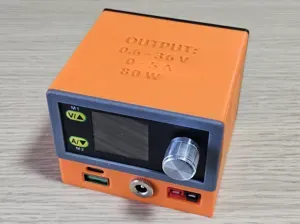

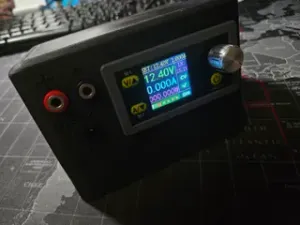

WZ3605E Type-C PD Mini PSU

Modified original WZ3605E case to fit my need by merging it with my other designs such as XT60 mount and Powerpole mount. This design have:

- XT60, Powerpole, DC barrel jack (5.5x2.1mm) and USB Type-C as input options. - Powerpole, DC barrel jack (5.5x2.1mm), USB Type A and USB Type-C PD (using 3516 or 3518 board) for outputs.

BOM:

- 1x WZ3605E buck-boost converter module (or any other module of the same size and form-factor) - 2x Powerpole - 1x XT60 connector - 2x 5.5x2.1 DC barrel jack - 3516 or 3518 USB Type-C PD board (can only buck, so if you want to use 20v Type-C output, you'll need to set WZ3605E module to output at least 24v) - 4x 2.5-3mm screw. - Cables cut to lengthModified original WZ3605E case to fit my need by merging it with my other designs such as XT60 mount and Powerpole mount. This design have: - XT60, Powerpole, DC barrel jack (5.5x2.1mm) and USB Type-C as input options. - Powerpole, DC barrel jack (5.5x2.1mm), USB Type A and USB Type-C PD (using 3516 or 3518 board) for outputs.

BOM:

- 1x WZ3605E buck-boost converter module (or any other module of the same size and form-factor) - 2x Powerpole - 1x XT60 connector - 2x 5.5x2.1 DC barrel jack - 3516 or 3518 USB Type-C PD board (can only buck, so if you want to use 20v Type-C output, you'll need to set WZ3605E module to output at least 24v) - 4x 2.5-3mm screw. - Cables cut to length
