Prusa CORE One Nozzle Wiper - Elegoo Wiper

Adapted Core One wiper design to fit the Elegoo Nozzle Wiper design.

I printed it with black PETG, PLA is probably not a good life long solution but can also work.

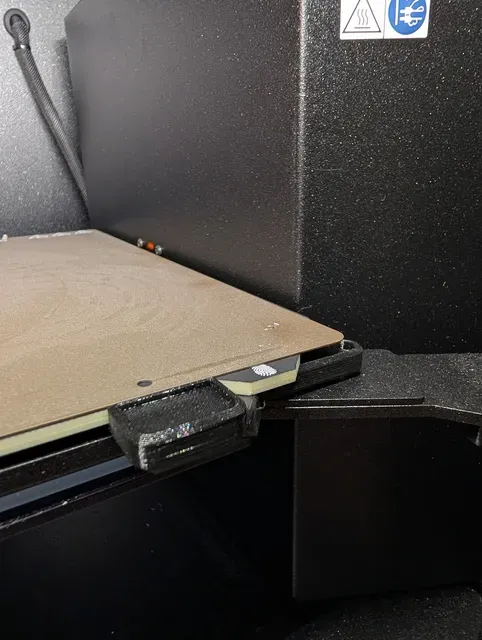

Left side:

Left side design is for M3x12, countersunk head screw, secured from underneath.

WARNING: USE AT YOUR OWN RISK! I tested the Wiper on my CORE one but, I cannot guarantee that it will work for you and will not damage your nozzle or printer.

Add the following code in the Printers tab settings under Custom G-Code , using the Expert Mode for PrusaSlicer.

; ; Nozzle Wiper Code ; G0 X65 Y-12 Z2 F3000; G0 X40 Y-13 Z1.5 F3000; G0 X65 Y-14 Z1.5 F3000; G0 X40 Y-15 Z1.5 F3000; G0 X65 Y-16 Z1.5 F3000; G0 X40 Y-17 Z1.5 F3000; G0 X65 Y-18 Z1.5 F3000; G0 X40 Y-19 Z1.5 F3000; G0 X65 Y-19 Z1.5 F3000; G0 X40 Y-18 Z1.5 F3000; G0 X65 Y-17 Z1.5 F3000; G0 X40 Y-16 Z1.5 F3000; G0 X65 Y-15 Z1.5 F3000; G0 X40 Y-14 Z1.5 F3000; G0 X40 Y-13 Z1.5 F3000; G0 X65 Y-12 Z2 F3000; To be inserted after this line of code:

G29 P9 X208 Y-2.5 W32 H4 Right side:

Right side design is for M3 nut to be inset from above, secured by a M3x12 screw from below.

Please adapt the code for the right hand wiper.
