Dragon Burner MGN9H Pandora Gantry X Carriage Mount

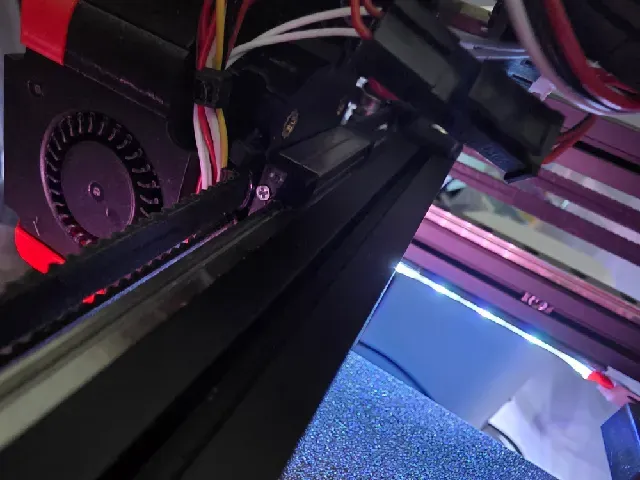

I had a lot of issues trying to mount the Dragon Burner toolhead on the original Pandora Gantry X Carriage on my V0.2 because it expects the toolhead to sit flush to the carriage and leaves no room for wires. I could not find any good alternatives so I remixed the pandora gantry carriage. This extends the carriage outwards towards the front by 6mm. This gives enough room for the wires. I'm using the hammerhead bed mount from the HexZero and I was expecting to lose some usability for Y axis on the bed, but I'm still able to reach the very back of the bed.

The M3 nuts were replaced with heat inserts since that's my preference.

I would still make sure that the wires are out of the way before tightening down the toolhead to avoid crushing wires.

Hardware

- 2x M3x5x4 heat inserts used to mount the toolhead - 4x M3x14 BHCS for mounting this carriage to the rail carriage - 2x M3x40 SHCS for front toolhead mount - 1x M3x16 for the rear toolhead mount Print with supports only on the top notch as shown in the photos. Block other supports.
