NCASE M1 PowerColor Red Dragon 5700 XT 120mm Fan Duct

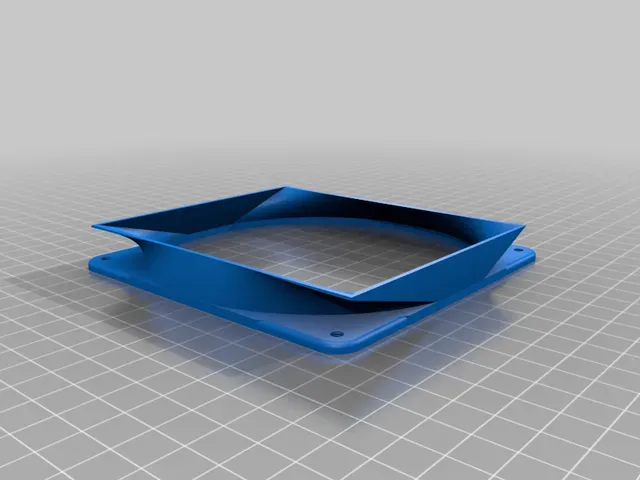

These are ducts I've designed for both Noctua NF-12 and Arctic P12 fans when deshrouding the PowerColor Red Dragon AMD Radeon 5700 XT in the NCASE M1 chassis to maximize fan-to-heatsink airflow and utilize 120mm fans to increase cooling and reduce noise.

They're threaded for m4 bolts (30mm length needed to attach duct and fan through bottom of M1 case).

Printed on Prusa MK3S with no supports. Variable layers used to improve bolt threads on the base.

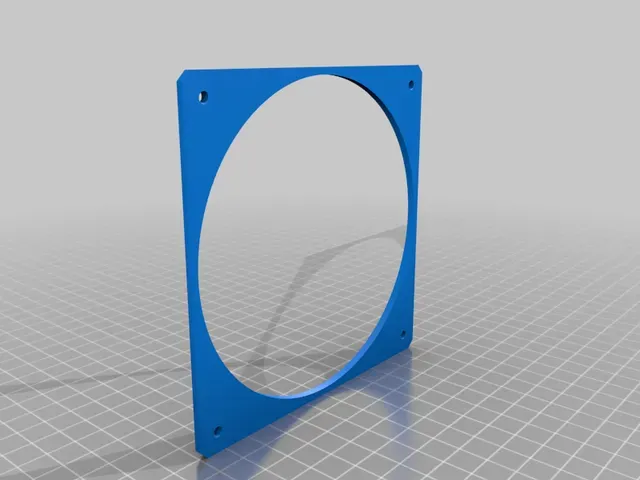

Bases uploaded separately if you want to build your own duct or project off of those.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 15%

Filament: eSun PLA PRO PLA Black

Notes:

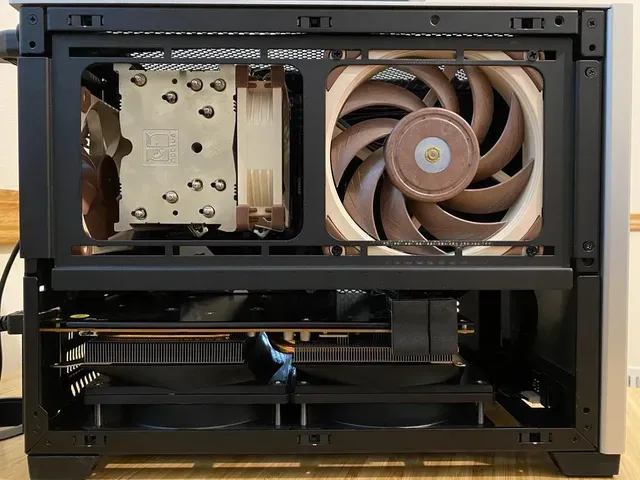

Install as left as possible on bottom of case to line up with GPU heatsinks properly

Category: Computer
