Wafer Dippers in many sizes

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 0 Likes
  • 7 Downloads
  • 0 Makes
  • 0 Comments
  • 64 Views

This model on other platforms

Author:dimolina

Published

Download on Printables

Description

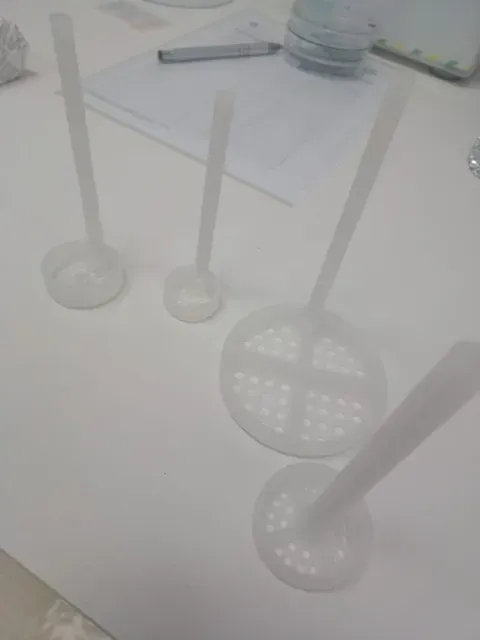

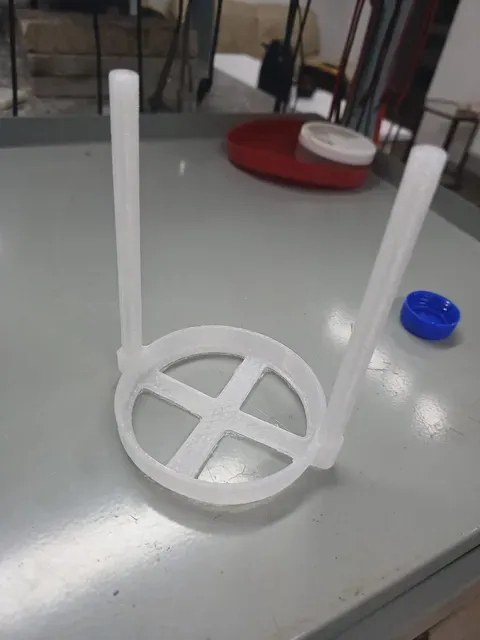

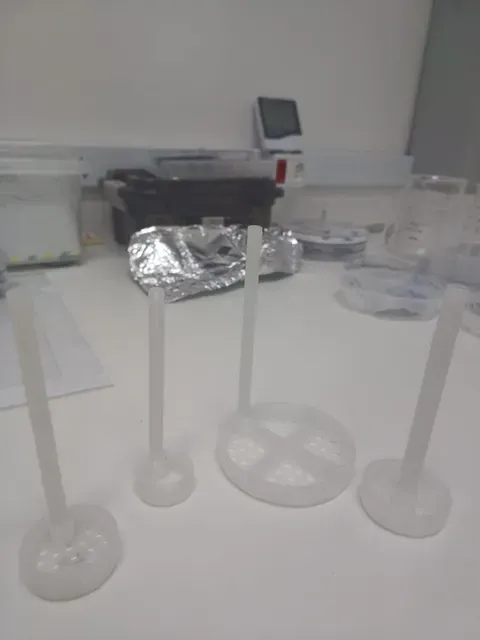

I'm a phD student and I work in nano and microfabrication. These dippers are very helpful to dip in chips or something in chemical fluids, mainly when the time of the dive is required.

I printed all models with an Enders 3 v3 SE model using PP (polypropylene) filament. Print with PP filament is VERY hard, and I needed several tests to succeed eventuallyto succeed eventually. For adhesion and to prevent warping, I used B700 glue. If you have a closed printer, maybe PP tape without glue is sufficient.

Printing Settings:

- Printer Model: Creality Enders 3 v3 SE - Filament: PP - Quality: 0.2mm - Infill: 40% - Printing Temperature: 235 ºC - Plate Temperature: 0 ºC - Plate Temperature at Initial Layer: 100ºC - Flow: 110% - Printing Speed: 40 mm/s - Cooling: No - Support: No - Build Plate Adhesion: Brim Any questions, please send a comment!

Tags

wafersiliconpolypropylenedipperdippers
