Description

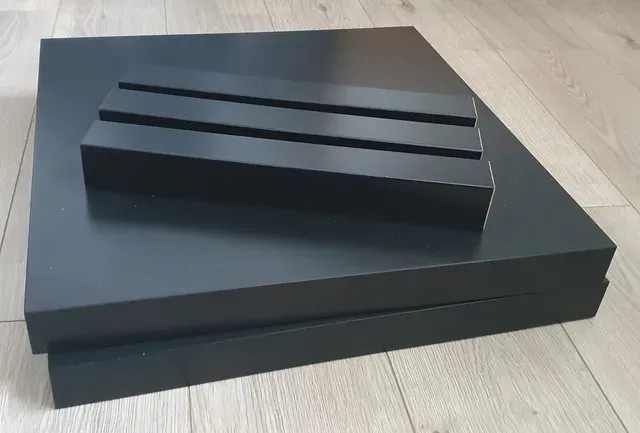

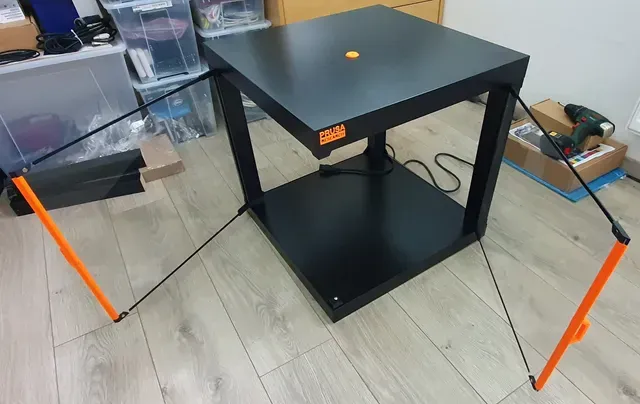

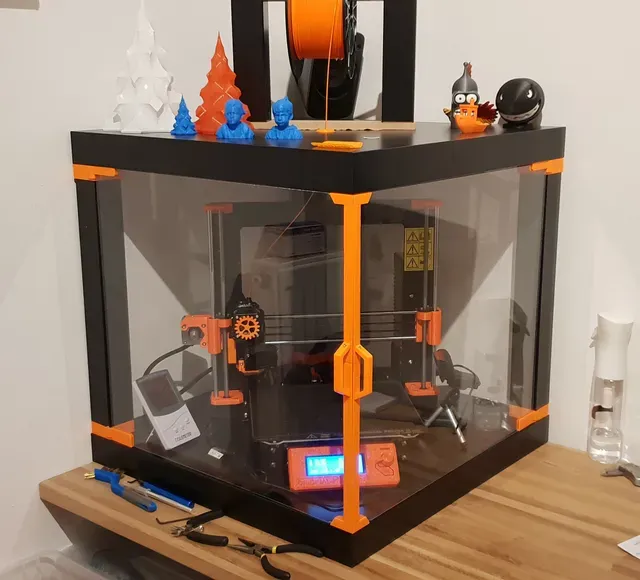

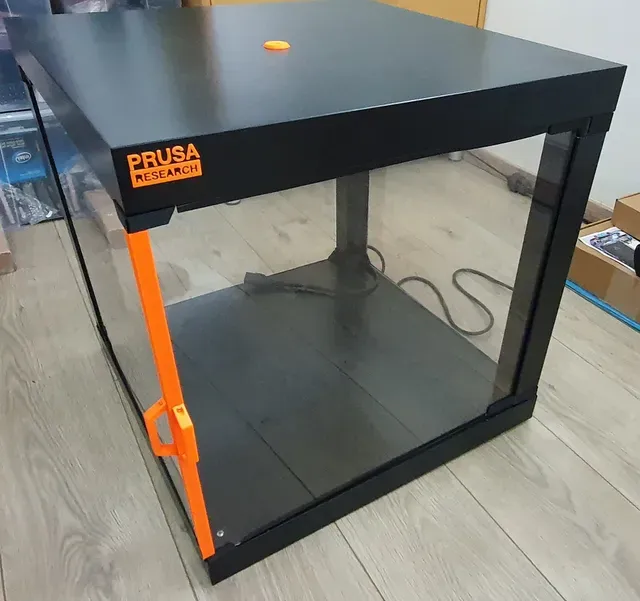

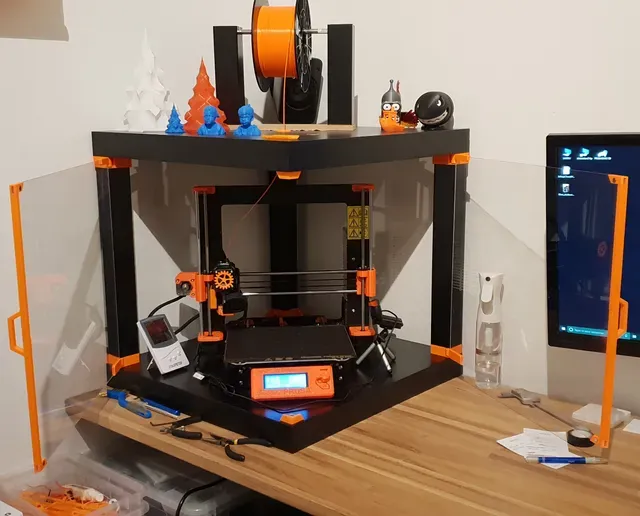

Prusa i3 MK3 Corner ENCLOSURE - Ikea LACK table

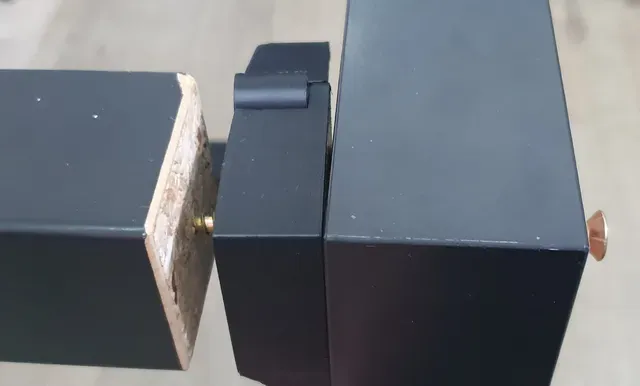

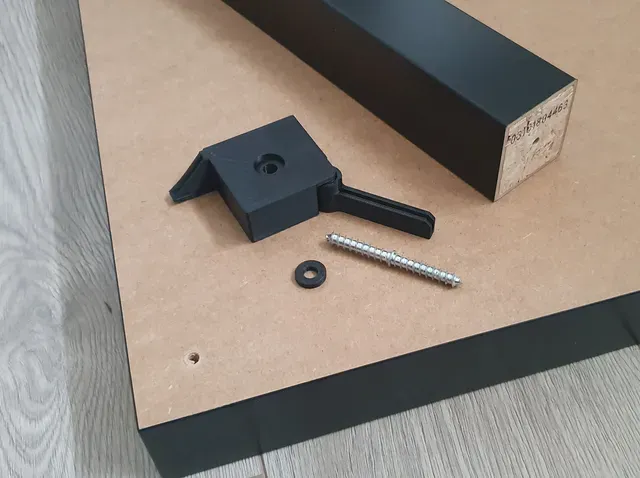

Top Corners inclueds brackets that allow you to use the original screws that came with the Lack table.

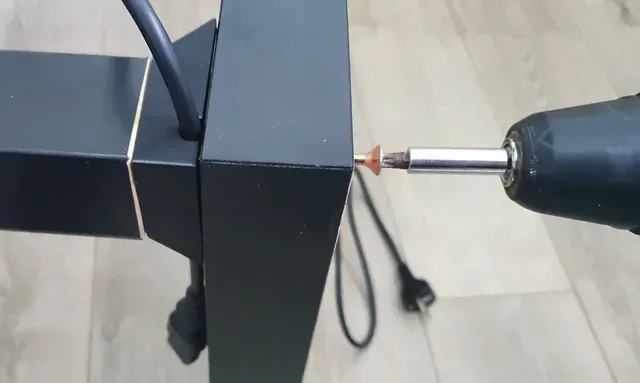

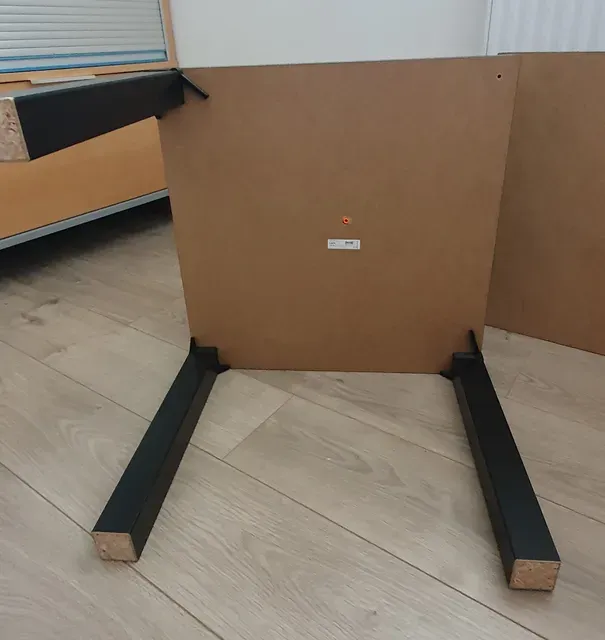

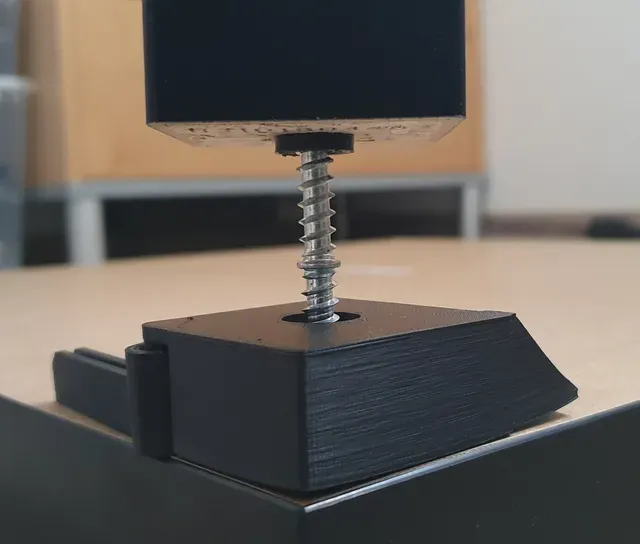

The second Bottom table is screwed to the legs througt the Bottom Corners parts.

I made the gaps a bit tighter so the Plexi won't slip out.

Let me know if it is good, too tight or too loose..

What you'll need :

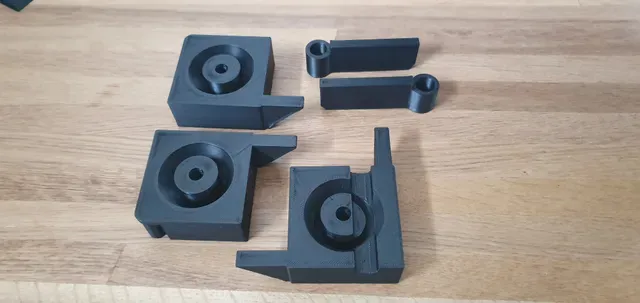

Print :

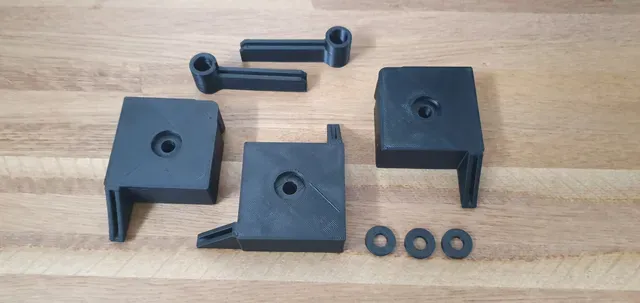

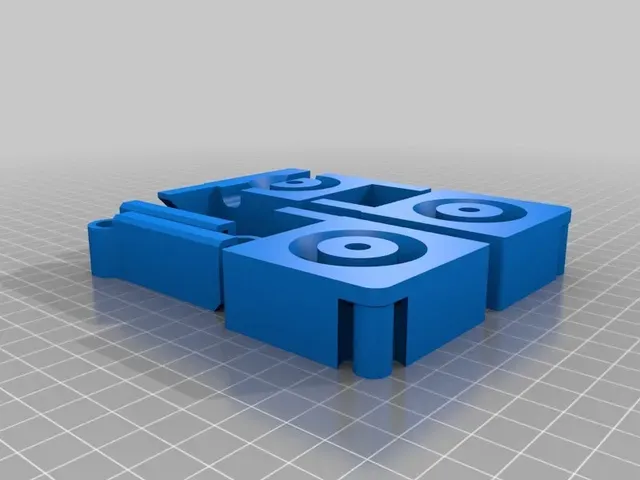

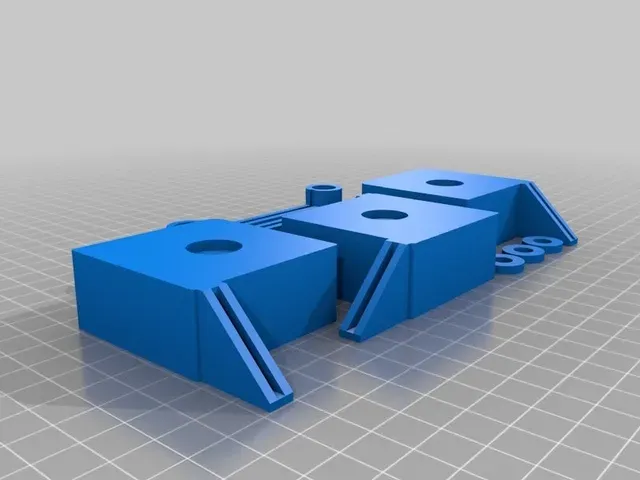

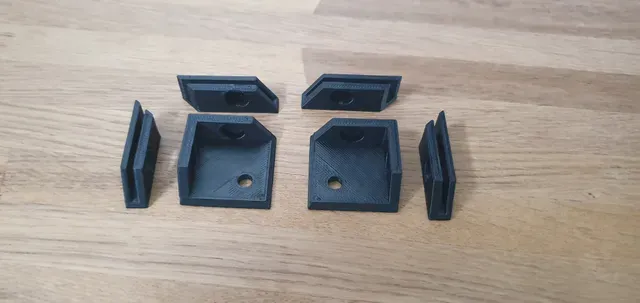

1x Prusa_Enclosure_Top_Corners_2.5mm or 3mm version

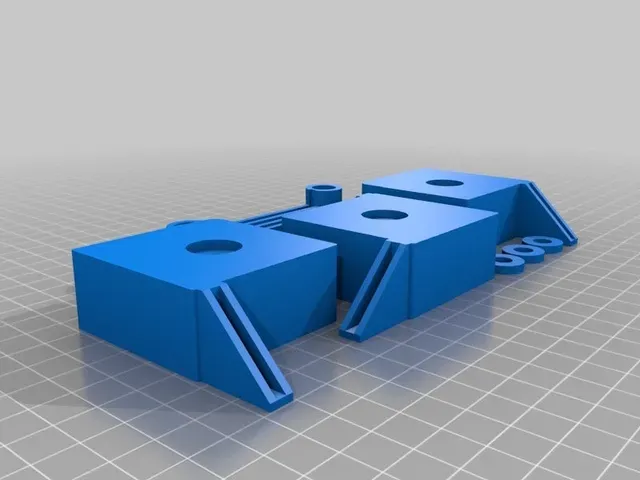

1x Prusa_Enclosure_Bottom_Corners_2.5mm or 3mm version

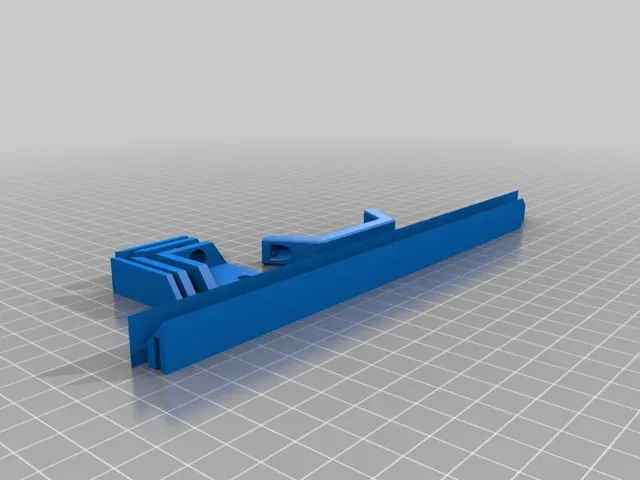

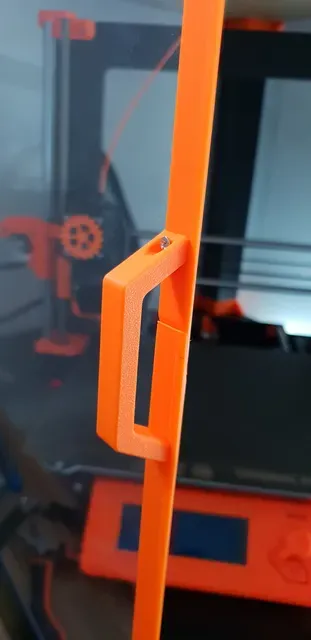

2x Prusa_Enclosure_Door_2.5mm or 3mm version

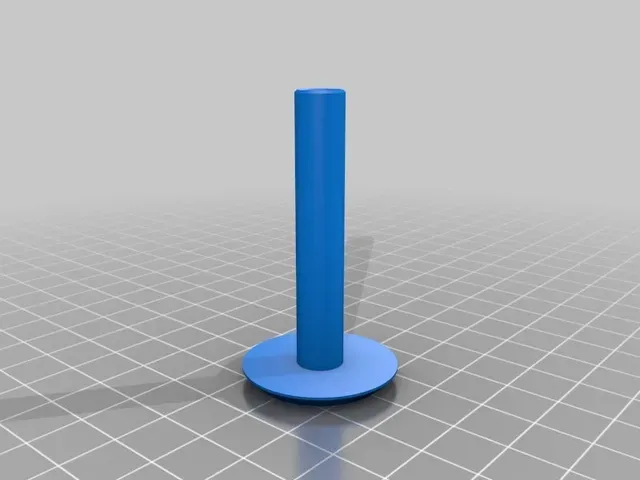

1x Prusa_Enclosure_Filament_guide

Plexiglass dimensions:

2pcs: 435 x 440 mm, thickness 2.5mm or 3mm

2pcs: 435 x 495 mm, thickness 2.5mm or 3mm

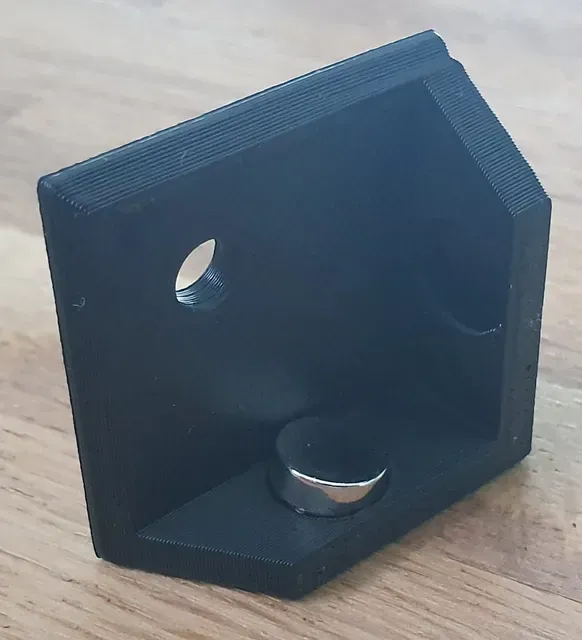

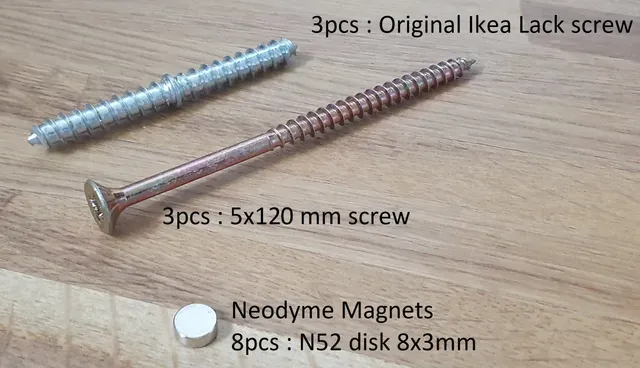

Neodyme Magnets

8pcs: N52 disk 8x3mm

Screws

3pcs : Original Ikea Lack screw

3pcs : 5x120mm screw

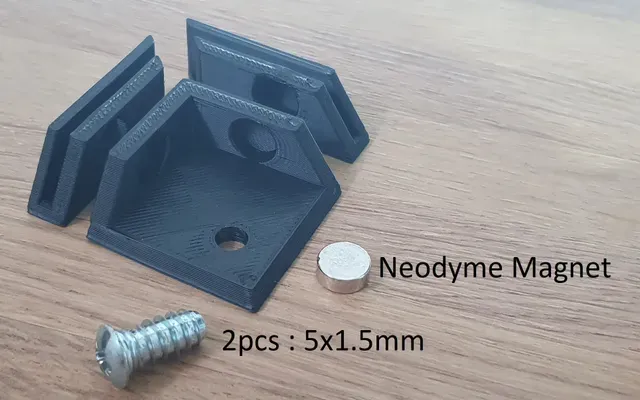

2pcs : 5x1.5mm screw

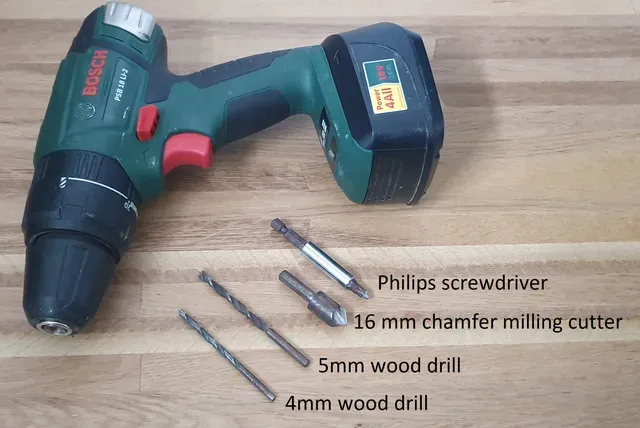

Tools :

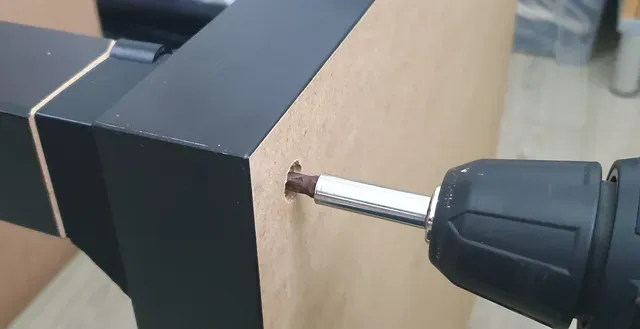

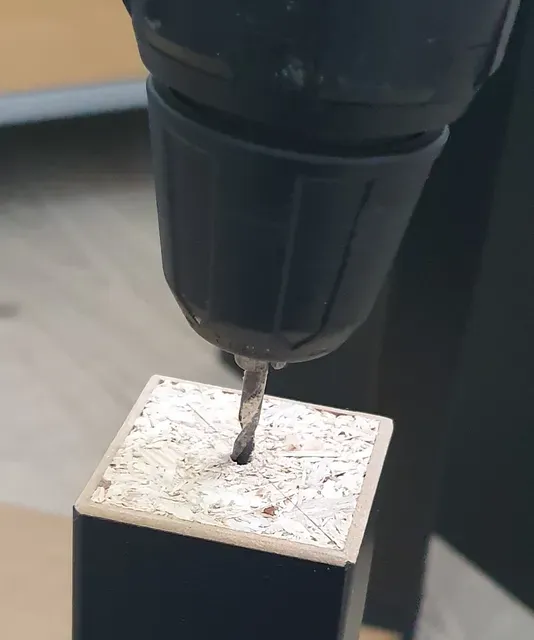

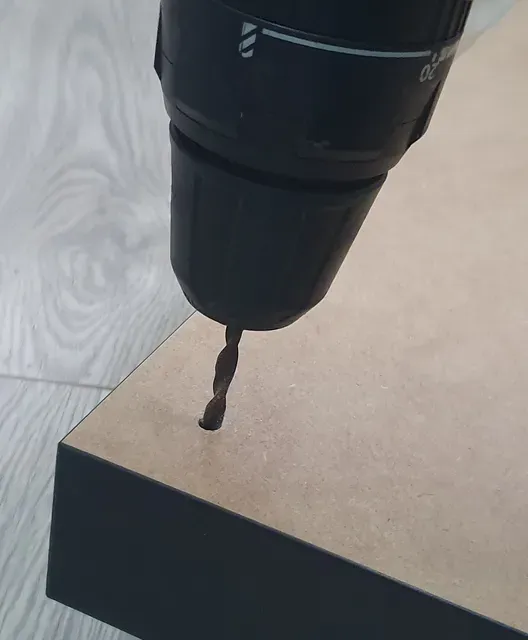

4mm & 5mm wood drill

16mm chamfer milling drill

Philips screwdriver

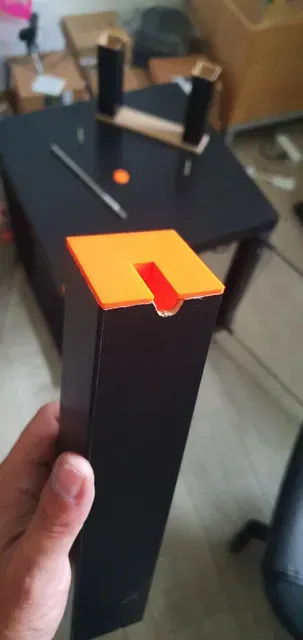

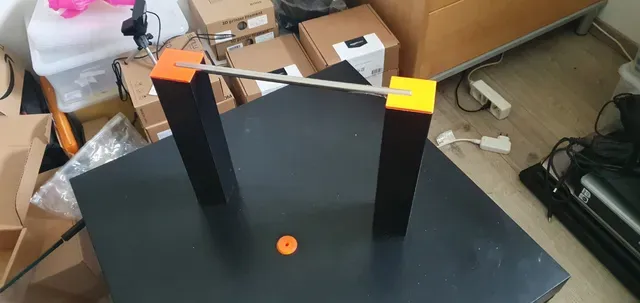

With the 4th Leg, il build a Spool Holder on top of the enclosure.

You'll need :

The 4th Leg

2pcs 5x120mm screw

1 10mm thick rod

Files used and modified :

- Door Handle keep closed - https://www.thingiverse.com/thing:36465

- Original Prusa i3 MK3 ENCLOSURE -Ikea Lack table - Prusa Research - https://www.thingiverse.com/thing:2864118

Print instructions

Printer Brand: Prusa

Printer: i3 MK3

Rafts: No

Supports: No

Resolution: 0.2

Infill: 20%
