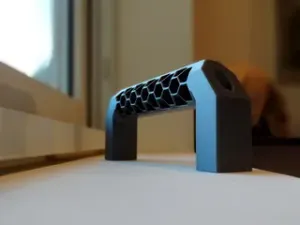

Prusa MINI Handle

With its light weight and compact design, the new Prusa MINI is a great machine for printing on the go. I wanted to make it a little more portable so I decided to print a handle.

Print instructions

I printed the handle upright with supports turned on. The rounded edges on this print make it hard to print in other orientations but I tested it with a 75 kg load without any signs of failure.

Layer Height: .2 mm

Infill: 30%

Supports: Yes

You will need 2 M5x12 mm button head bolts and 2 M5 3030 tslot nuts. I ordered these with extras for future projects.

https://amzn.to/2Q4gdED

https://amzn.to/2RV8BXr
