Rack Mount Bracket for Cisco 2960-C Series LL

✅ DESCRIPTION

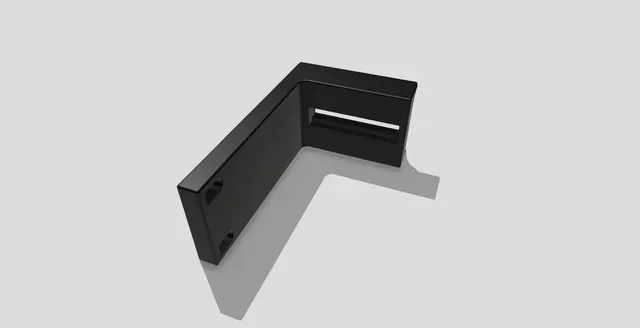

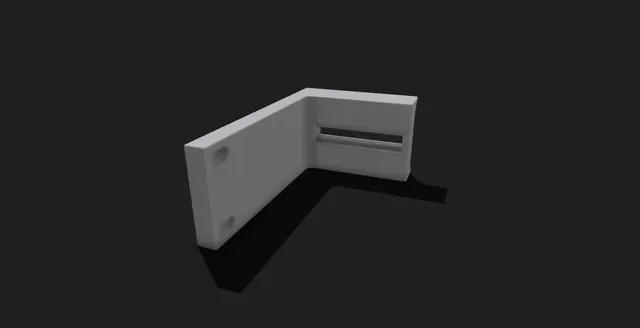

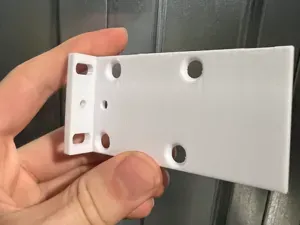

Cisco Catalyst 2960-C Rack Mount Bracket – 3D Printed Replacement

This is a custom-designed rack mount bracket compatible with the Cisco Catalyst 2960-C Series LL compact switch. It functions as an alternative to the original metal rack ear, allowing you to securely mount your switch in a standard 19-inch rack.

The design includes:

Correct mounting offset for the 2960-C chassis

Reinforced structure for stability

Mounting holes compatible with standard rack screws

Internal guide slot matching the original Cisco bracket footprint

This model prints quickly, requires no supports , and is strong enough when printed in PETG or ABS. Perfect for labs, homelabs, network racks, or replacing missing OEM rack ears.

✅ COMPATIBILITY

✔ Cisco Catalyst 2960-C Series LL ✔ Works with standard 19" server/network racks ✔ Also suitable for similar compact Cisco models with identical mounting pattern (verify before printing)

✅ FEATURES

Support-free print

Reinforced corner for higher strength

Mounting holes and spacing modeled after the original Cisco bracket

Lightweight and reliable

Ideal as a replacement for lost or unavailable OEM rack ears

✅ PRINT SETTINGS

Recommended FDM Settings

Material: PETG or ABS (PLA works but is less resistant to heat in racks)

Layer Height: 0.20 mm

Nozzle: 0.4 mm

Perimeters: 4 (for strength)

Infill: 40–60%

Supports: None required

Top/Bottom Layers: 4–6

Print Speed: 50 mm/s

Orientation: Flat on the side as shown for maximum strength

Strength Tips

PETG is recommended for network environments

Increase perimeters to 5 if mounting heavy cable bundles

Use 30–40% infill for a stronger bracket
