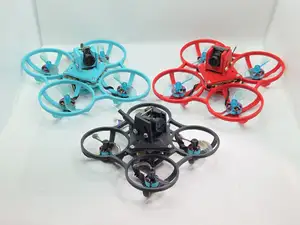

Parametric Whoop Canopy

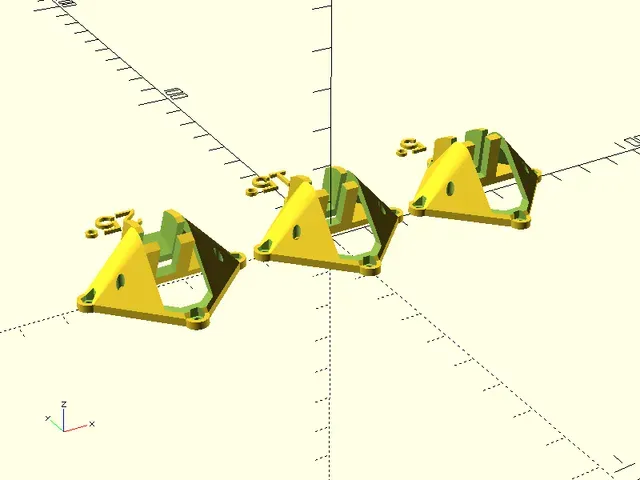

A parametric whoop canopy. Instances for BETAFPV C03 and HDZero Lux cameras included. Camera angle, Z offset, as well as most dimensions, are parametric. Mounting holes use M1.4-M1.6 nuts. Made with OpenSCAD.

GitHub: https://github.com/vsergeev/3d-parametric-whoop-canopy

Base Designs

- canopy.scad - Canopy Instances

- betafpv_c03_26x26_canopy.scad - BETAFPV C03 Camera Canopy with 26mm mounting holes (weight 2.6g ASA) - hdzero_lux_26x26_canopy.scad - HDZero Lux Camera Canopy with 26mm mounting holes (weight 2.8g ASA) Recommended Print Settings: ASA / PETG / Hard TPU, 0.20mm layer height, 100% infill. Print with no supports and 2 layer raft to prevent warping, or with supports under camera harness.
