eGPU case for the MSI GTX 1050 paired with the TH3P4 Lite

Model details

Platform
Printables
Price
Free
License
CC0
Public domain: print, modify and sell, no attribution required.
Formats
STL
  • 12 Likes
  • 25 Downloads
  • 0 Makes
  • 0 Comments
  • 899 Views

Author:Long Phan

Published

Description

What you'd want is the MSI GTX 1050 (NOT TI) Low profile card (usually goes around ~100$ Used, though I got a deal for a used card for 50$! crazy right?) (After getting your graphics card you need to take off the metal plate on the graphics card, simply use plyers to spin the DVI screw, and take off the screws on the bottom of the plate) https://www.ebay.com/sch/i.html?_nkw=GTX+1050+MSI+low+profile&_sacat=0&_from=R40&_trksid=p4432023.m570.l1313

a TH3P4 Lite eGPU dock (~130$ Brand New, off ebay) https://www.ebay.com/sch/i.html?_nkw=TH3P4+Lite&_sacat=0&_from=R40&_trksid=p2334524.m570.l1313&_odkw=GTX+1050+MSI+low+profile&_osacat=0

and a DC plug thats 12V 10A (in my case i got a Delta DC 12V 10A) https://www.ebay.com/sch/i.html?_nkw=DC+12V+10A+Delta&_sacat=0&_from=R40&_trksid=m570.l1313&_odkw=DC+12V10A+Delta&_osacat=0

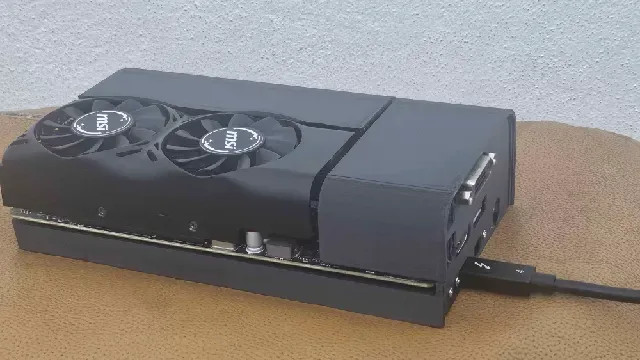

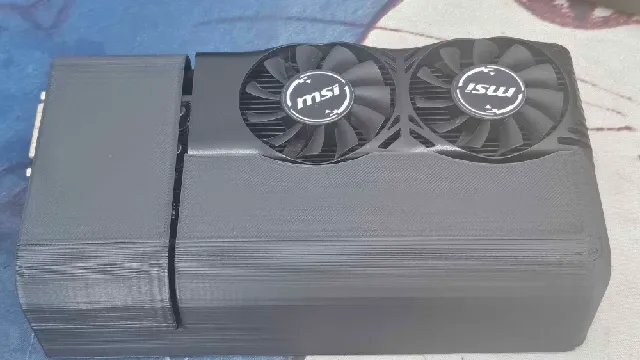

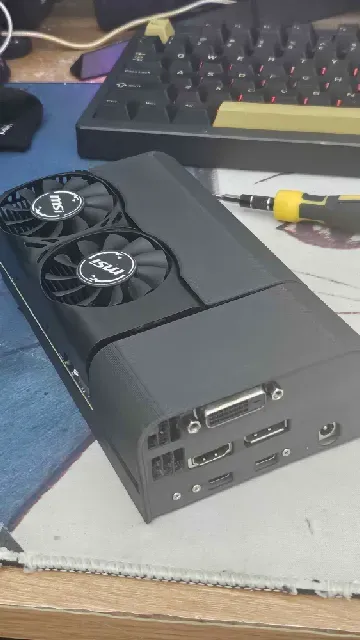

After purchasing all of this, print out the case, then carefully slide the GPU in the opening make sure the DVI port has gone through the opening on the front

Then from the bottom slide Dock at an angle and make sure the PCIe line is plugged into the graphics card,

after which plug your cable into both of your usb c ports so that you can screw the 3 screws into the dock, make sure to align the screw holes on the case to the screw holes on the dock!!!!

Afterwards print out the case cover and just proceed to screw the bottom plate in so that the dock doesn't wiggle inside!
