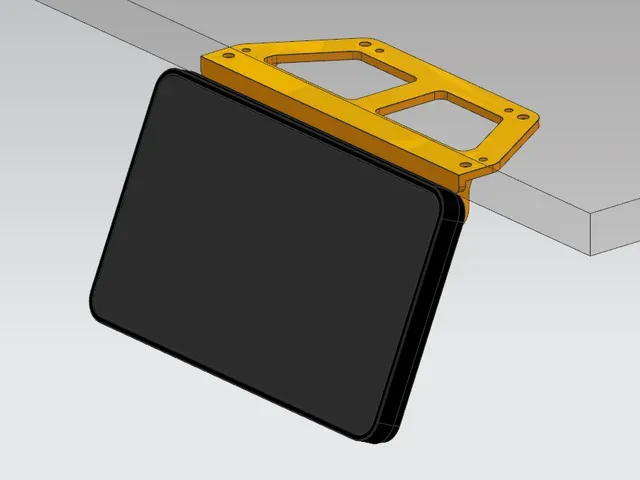

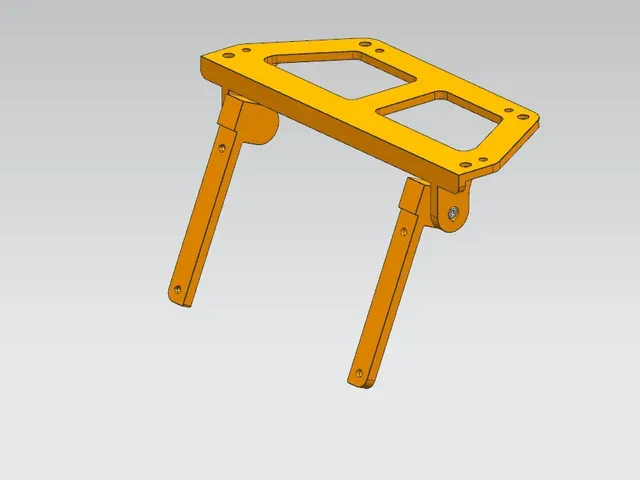

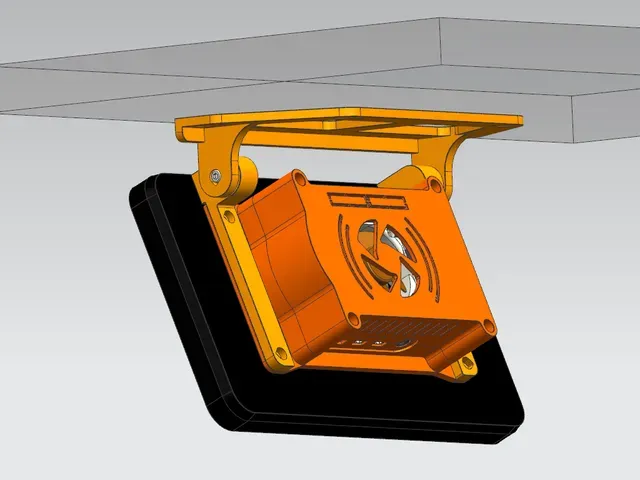

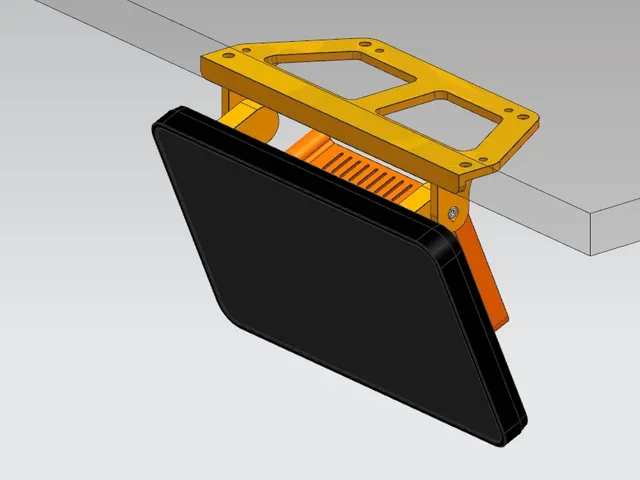

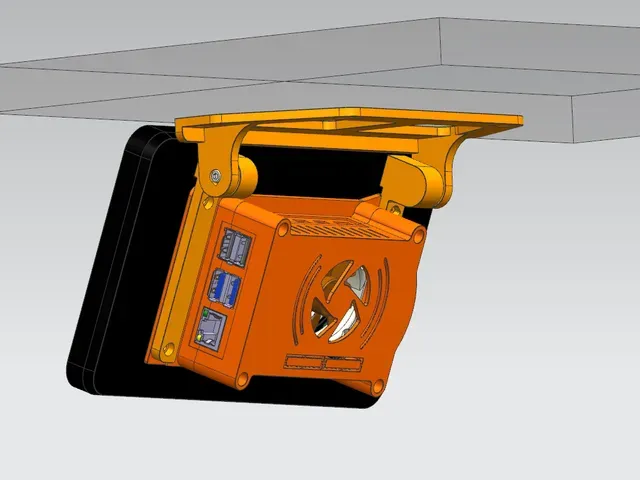

Plate mounting bracket for 7" touchscreen case

Plate mounting bracket for 7" Touchscreen case for Raspberry Pi 5 + slim version , 7" Touchscreen case for Raspberry Pi 4 + internal fan or 7" Touchscreen case for Raspberry Pi 3 (B/B+) + internal fan .

Features

- Thread inserts - Display angle adjustable - Case can be rotated 180° to adjust the position of the USB ports (left or right) Required parts

- 2x M3 Thread insert → Ruthex RX-M3x5.7 - 2x Cylindrical head screw M3 x 10 or 12mm - 4x 4,5 Countersunk screw or 4x M3 screw (Fastening plate) Assembly

Hole pattern (mm)

Print instructions

Supports: No

Pi image configuration

Position USB Ports Left side Right side

Set in config.txt lcd_rotate=0 lcd_rotate=2

Updates

- 2024.01.29 - Add version 2, more distance between pivot point and bracket (distance 50 mm)
