BN-220 GPS & TBS Crossfire rear mount for iFlight Nazgul5 XL5 V5

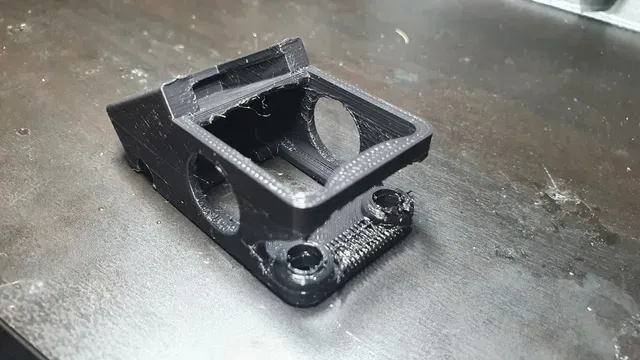

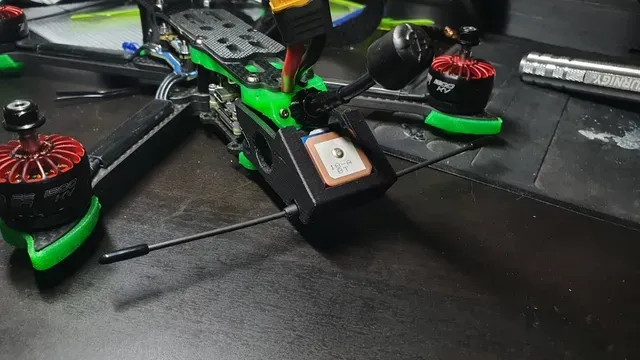

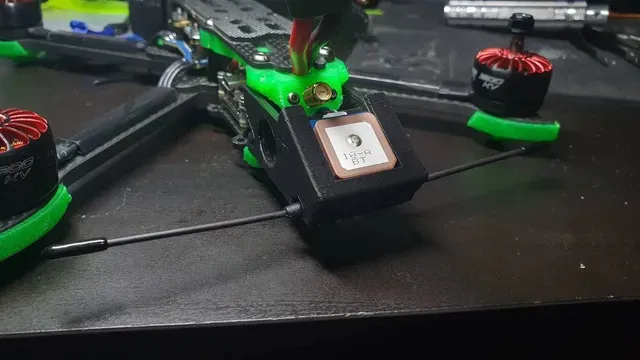

This is a rear mount for both a BN220 GPS unit & a TBS crossfire immortal antenna to fit the iFlight XL5V5 frame (Drones such as the Nazgul5).

Unlike others out there, this doesn't replace any of the existing parts. The rear frame bars slot through two holes in the base and an upper arm of the print on each side 'grabs' higher up the bar for support.

You may see in some images this top bar at the back is complete all the way along. Originally it was designed like that but I found it was too difficult to fit like that so I've updated the model to just have grab hooks higher up.

To fit the TBS antenna, simply pop it in place in the grove underneath (it should almost clip in place), then feed two thin cable ties through holes inside. Feed them back in again underneath and you should see them feed back out the back to lock off and trim.

If you like my design and have enjoyed printing it, please consider 'Buying me a coffee' and help me continue to develop new free designs: https://www.buymeacoffee.com/JoshForwood

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: Yes

Resolution:

200

Infill: 70

Filament: RigidInk FlexPLA Black

Notes:

You may find you're able to print this without support material. I printed it with minimal support, placing it only under the extreme overhangs.

Category: R/C Vehicles
