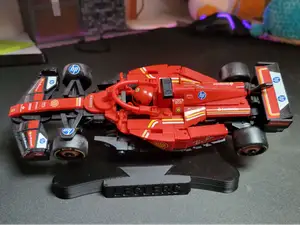

F1 Lego Speed Champions Display Stand V2

You don't have space, but you want to display with style all your F1 Lego Speed Champions . With this modular display you can do it.

This model is compatible with the LEGO sets 77242, 77243, 77244, 77245, 77246, 77247, 77248, 77249, 77250, 77251.

Dimensions with car :

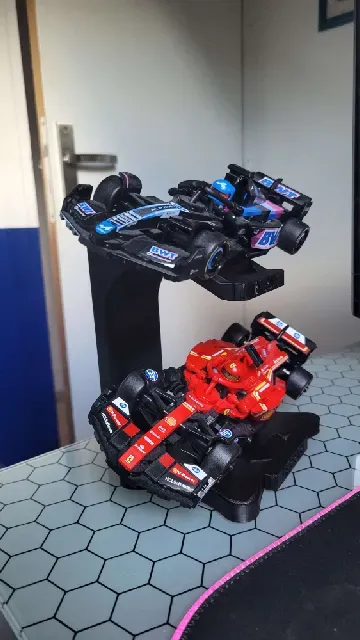

2 Car Display Stand : 203 x 127.5 x 195 mm

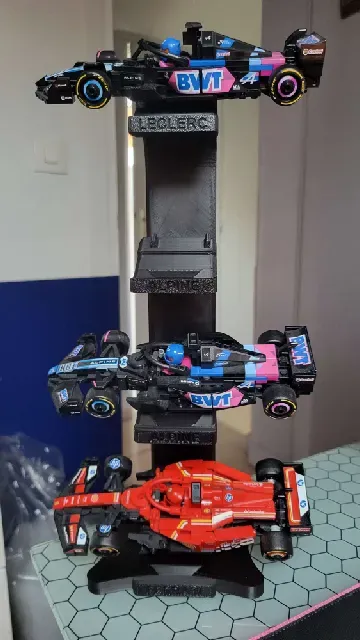

3 Car Display Stand : 203 x 127.5 x 302 mm

4 Car Display Stand : 203 x 127.5 x 409 mm

5 Car Display Stand : 203 x 127.5 x 516 mm

Tower Display Stand (display 10 car) : 425 x 366 x 392 mm

Print Recommandations :

Materials : PLA or PETG ( I tried both but prefered PETG)

Layer heigth : 0.2 mm

Assembly :

I use 0.2 mm clearance, so be carefull when you assembly.

You can secure the connection between two parts by adding two M4 screws 12 mm and two M4 inserts 6 x 6 mm.

Folder Organisation :

- 1 folder contains all the drivers' name labels.

- 1 folder contains all the team name labels.

- 1 folder contains all the parts for the two-car display version.

- 1 folder contains all the parts for the three-car display version.

- 1 folder contains all the parts for the four-car display version.

- 1 folder contains all the parts for the five-car display version.

- 1 folder contains all the parts for the tower version.

- 1 folder contains all the different parts needed to make all versions.

Some files have the name 'END' in it. These files do not contain a connection to continue the assembly.

Connection :

If you want to include something through the connection, I provide a plan for you below.
