Small Pipe & Tube Clips | 16-28mm (M3)

BOM: Printed with ROSA3D High Speed PLA Gray

This is the "Small Diameter" extension of my pipe mounting clip set, designed for organizing smaller conduits, cables, or water pipes.

Just like the larger version, these feature a robust C-style design that snaps securely onto the tube, with a flat base for stable mounting.

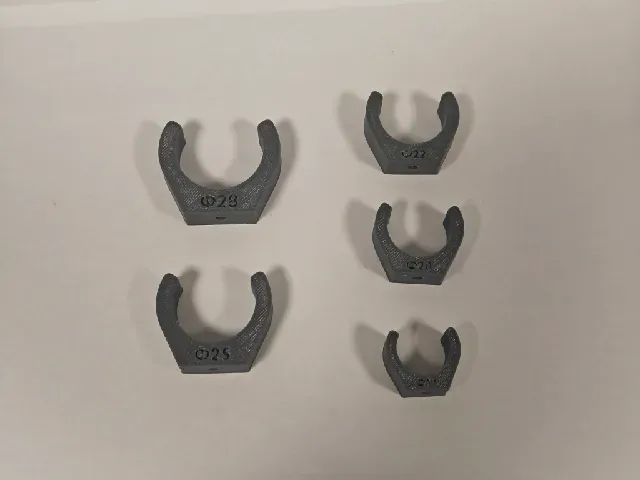

The Set Includes 5 Small Diameters:

- 16mm (Standard electrical conduit size)

- 20mm

- 22mm

- 25mm

- 28mm

Key Features:

- M3 Mounting: The central hole is specifically sized for M3 screws/bolts , making them perfect for precise installation in tight spaces or on 3D printer frames.

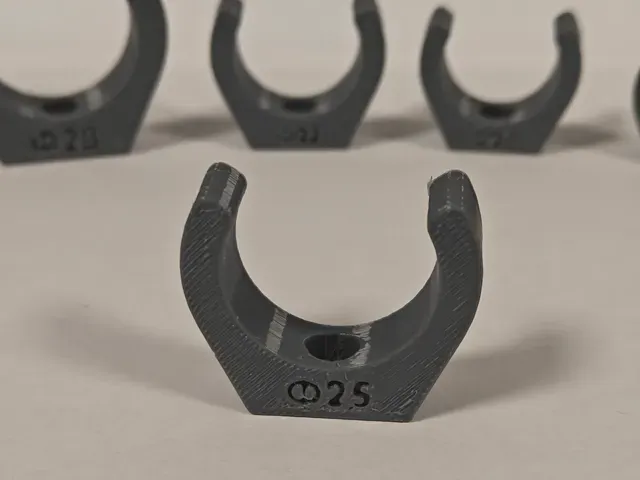

- Easy Identification: Each clip has the diameter ($\Phi$) embossed on the front for quick sorting.

- Clean Organization: Perfect for running cable management tubes or securing pneumatic lines in your workshop.

Printing Instructions:

- Orientation: Print standing upright on the flat base.

- Supports: None required.

- Material: PETG or ABS is recommended for the best "snap" flex without breaking. PLA works for static mounting.

- Walls: 3 perimeters recommended.
