Modular Conveyor Belt for Educational Automation Projects

This project represents a fully modular conveyor belt system , developed as part of a school mechatronics project . The design focuses on simplicity, functionality, and easy customization .

The conveyor is composed of several 3D-printed parts that can be assembled without complex tools. It is designed to work with a DC gear motor , guide rollers, and a flexible belt, making it ideal for demonstrating basic principles of mechanical design, automation, and control systems .

The model can be used for:

- Educational demonstrations

- Automation experiments

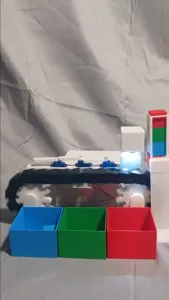

- Color or object sorting systems

- Arduino-based control projects

All parts were designed to be printable on common FDM 3D printers without the need for supports (unless stated otherwise).

Compatible Modules & Components

This conveyor belt system is designed to be compatible with the following exact hardware modules :

🔸 Control & Electronics

- Arduino Uno (ATmega328P)

- Arduino Nano

- Arduino Mega 2560

- Compatible Arduino boards

🔸 Motor & Drive

- DC Gear Motor (TT Motor, 3–6 V, metal gearbox recommended)

- L9110S Dual H-Bridge Motor Driver Module

- External 5 V DC Power Supply

🔸 Sensors (Optional)

- TCS3200 Color Sensor Module

- Infrared Obstacle Sensor (IR reflective sensor)

- Limit Switch (Micro Switch)

🔸 Actuators

- SG90 Micro Servo Motor (9 g servo)
