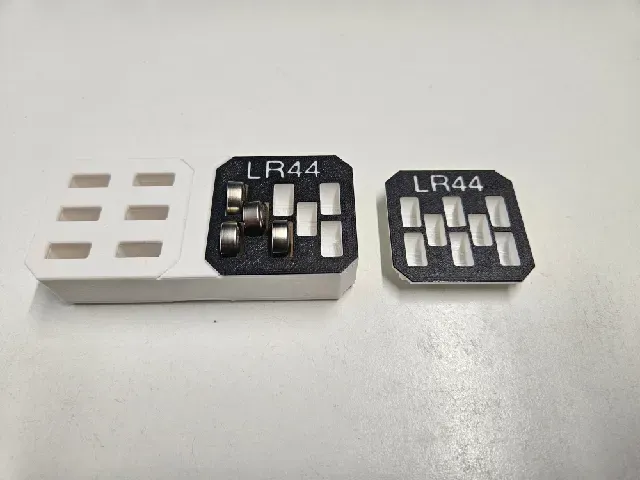

1x1 CU - LR44 - Multibin Top

This is a 1x1 Multibin Top to hold up to eight LR44 batteries.

Additional Parts

Since this is only a Multibin Top you need extra parts. Please note that the following links might get outdated if parts are updated on Thangs. Use the official Multiboard Parts Library to find the correct part then.

- To save material:

- 1x1 - Top Click Rim

- Alternatively:

- 1x1x0.5 CU - Bin - Multibin Insert

- or any other height of 1x1 CU Multibin Inserts

With the flexibility of Multiboard there are other options like bigger shells with dividers, etc.. Use the top in whatever way you see fit.

Printing

Print with common Multiboard print settings:

- 3 perimeter wall thickness

- 0.2 mm layer height

- 15% infill

- no supports.

- for the rest, keep your printer's default settings.

The printing orientation is as provided in the file.

For the Shadowboard effect, I suggest to add a color / tool change at 0.4 mm height in your slicer of choice.

The provided 3MF file contains the text in either a cutout and embedded format for a multicolor system.
