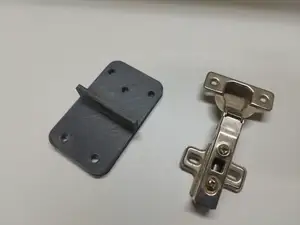

Ikea PAX hinge drill jig

Model details

Platform
Printables
Price
Free
License
CC0
Public domain: print, modify and sell, no attribution required.
Formats
STLSTP
  • 4 Likes
  • 19 Downloads
  • 0 Makes
  • 0 Comments
  • 191 Views

Author:MSevela

Published

Download on Printables

Description

Remix of https://www.printables.com/model/225417-hinge-drill-jig

I added spacers for IKEA PAX doors (5mm from side) and added spacers for approx. 1mm gap between two doors above each other -equals 36mm from side of the board 9,5x22,5 mm from center to screw holes for hinge cup. Forstner bit holder edited to accomodate a little bit larger drill bit (i got one bit, where the fit is really thight and I couldnt fit the drill in it)
