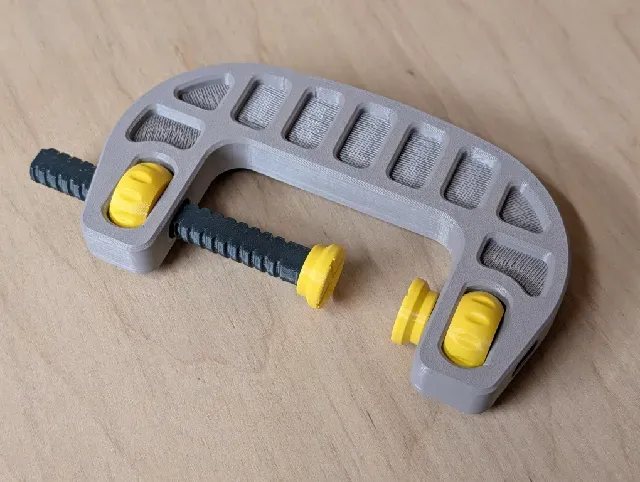

C-clamp - 100% printable - no support - optimized orientation

Designed for high pressure: Optimized print orientation ensures maximum stability and superior clamping force.

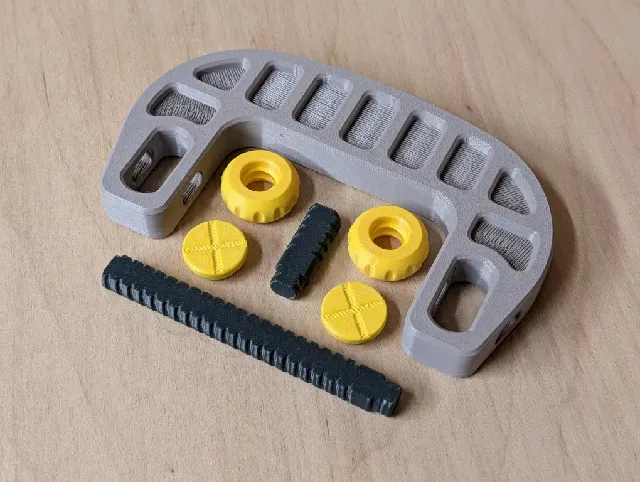

Choose between short and long rods for a standard setup or two middle rods for a perfectly symmetrical build.

Dimensions:

- Length 143 mm

- Hight 82 mm

- Width 16 mm

- Clamping range 64 mm

Settings rod (short, middle , long)

- 2 perimeter

- 0,2 layer hight

- 100 % infill

- no support

Settings others:

- 2 perimeter

- 0,2 layer hight

- 15% infill

- no support

Model printed with:

- Prusament PETG mango yellow

- Prusament PETG anthracite grey

- Prusament PETG urban grey
