Print-In-Place Glue-On Sliding Lock | 80mm Compact Latch

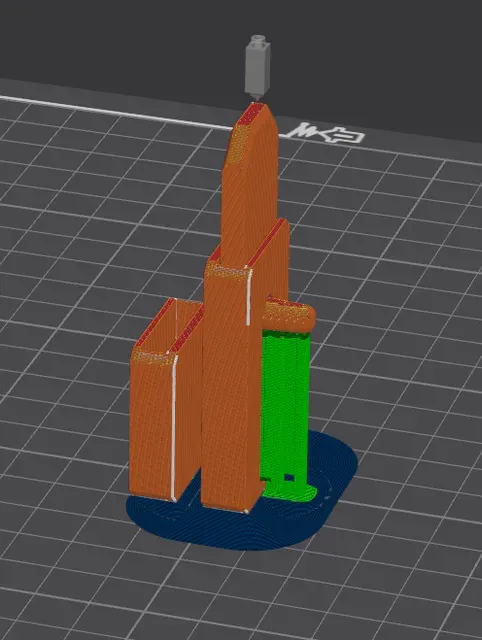

Print-In-Place Glue-On Sliding Lock | 80mm Compact Latch — Image 2 of 2
3D model · Printables

Print-In-Place Glue-On Sliding Lock | 80mm Compact Latch

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 5 Likes
  • 42 Downloads
  • 0 Makes
  • 0 Comments
  • 132 Views

Author:3DGeoMetrics

Published

Download on Printables

Description

This is a compact 80mm sliding lock designed to be printed in two interlocking pieces.

The parts print already assembled and are free once removed from the build plate.

Designed to be glued onto flat surfaces — no screws required.

Dimensions:

- Length: 80mm

- Width: 25mm

- Height: 17mm

- Ø6 locking feature

- Integrated sliding slot system

Features:

- Print-in-place design

- No supports required

- Compact form factor

- Clean mechanical look

- Easy to scale if needed

Printing settings:

- 0.2mm layer height

- 3 perimeters recommended

- PLA or PETG

- Ensure good first layer accuracy for free movement

If your printer is tight on tolerances, slightly adjust XY compensation.

Remixes and improvements welcome.
