Ender 3 S1 (Sprite) ADXL345 Fly USB mount

A mount for attaching the Mellow Fly ADXL345 USB accelerometer board to the Sprite hot end and clipping to the bed.

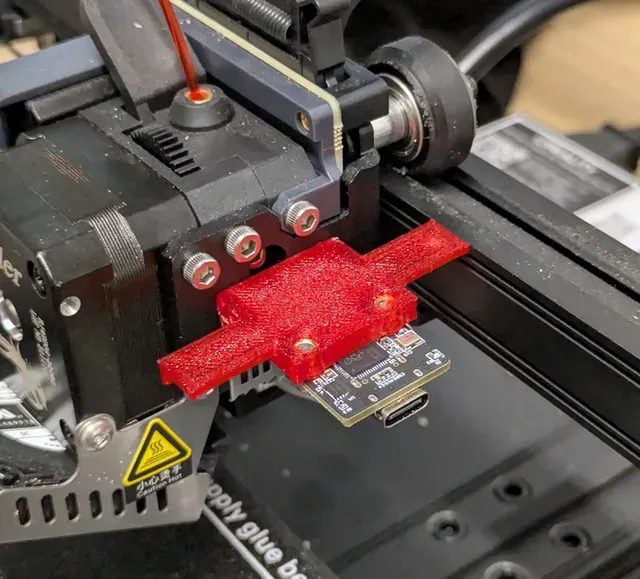

Mounting to the hot-end is done using the two lower screws on the right-hand side. The mount should be flipped upside down, otherwise one of the wings will foul with the heater cable.

Mounting to the bed is done with two binder clips. This should be attached to the front or rear of the bed - otherwise the binder clips or USB cable can strike the Z-gantry.

Prerequisites

- Mellow Fly ADXL345 USB board

- 2x M3 heat inserts

- 2x M3 screws

Print Settings Used

- No supports

- Layer height 0.2

Klipper config example can be found on my GitHub Gist .

This design was heavily inspired by vampyrex13's design, found on Thingiverse.

OpenSCAD source code is included for easier remixing. If you remix, please consider also uploading your source :)
