Dyson V8 Accessories & Charger Base Organizer

Dyson v8 cordless vacuum includes a few accessories for different cleaning jobs but without an easy way to organize them close to the charging station.

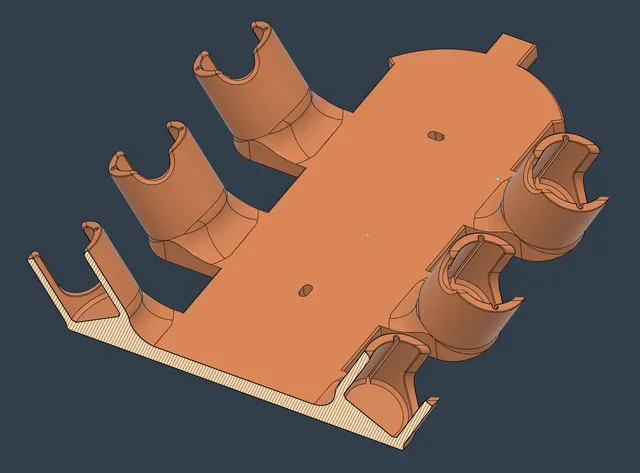

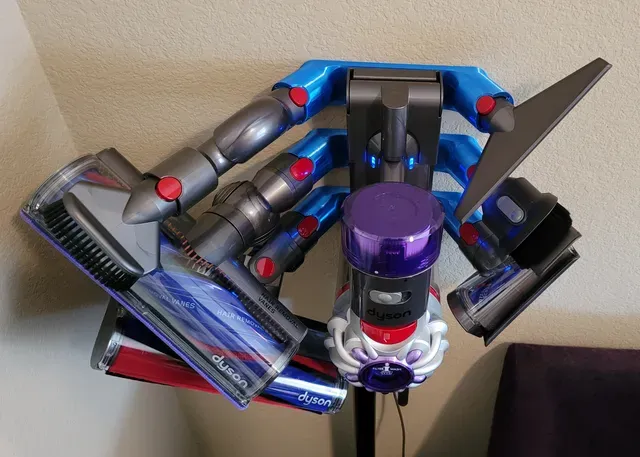

This “base” is placed between the wall and the charging station. It utilizes the existing mounting screw holes of the Dyson charging station. It can hold up to 6 Dyson v8 accessories in addition to 2 provided by the OEM charging station.

This “base” is designed and tested for our Dyson v8 vacuums, but I believe it will also work for v7, v10, v11 and maybe other versions too. If you find that fits other Dyson vacuums please leave a comment with your model and maybe an image too!

Features of this base organizer.

- Adds 6 more v8 accessory holding places; total of 8 accessories can be hold.

- No modifications to the Dyson Charging Station.

- Uses same holes and location with OEM unit.

- No additional holes on the wall.

- Can be printed without any supports.

Notes

- Used Polymaker Galaxy Purple Glitter ABS Filament 1.75mm .

- Used Polymaker Panchroma PLA Azure Blue Filament, 1.75mm.

- 20% Gyroid infill.

- Dyson OEM screws used. No need for longer screws.

- In case your printer cannot fit the complete object, use your Slicer's “split” option and print 2 pieces. Preferable split once between the 2 screws and between accessory holders.

Enjoy!
