Anycubic i3 Mega X-Carriage (MK4) BMG direct drive Remix

Model details

Platform
Printables
Price
Free
License
CC0
Public domain: print, modify and sell, no attribution required.
Formats
STL
  • 20 Likes
  • 156 Downloads
  • 1 Makes
  • 4 Comments
  • 4 012 Views

Author:Aprinta-me

Published

Download on Printables

Description

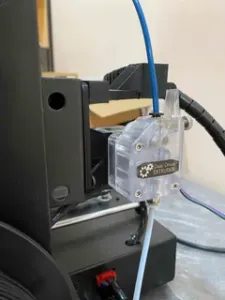

A remix for the popular Anycubic i3 Mega with BMG direct drive front plate.

This can be screwed in the carriage.

Instructions:

1. Screw in the top screw in the 180 degree orientation. (vertical)

2. Screw in the BMG extruder with the V6 hotend and motor attached.

3. Turn the whole plate 180 degree to the correct position.

4. Screw in the last 2 bottom screws.

5. Attach a Fan Holder for the V6 hot end. (I used an adapter for 40mm fan to the V6 hotend)

Used M3x43 screws to screw the BMG hotend + motor combo.

Tags

extruderbmgcarriageanycubicdirectdriveanycubici3megai3mega
