Kobra X Top and Side Mount

Do you find the factory filament design a little lacking?

Not enough overhead room?

Print the Side Mount variant of this

Need a place to mount your dryer(s) or ACE unit?

Print the Top Mount variant of this

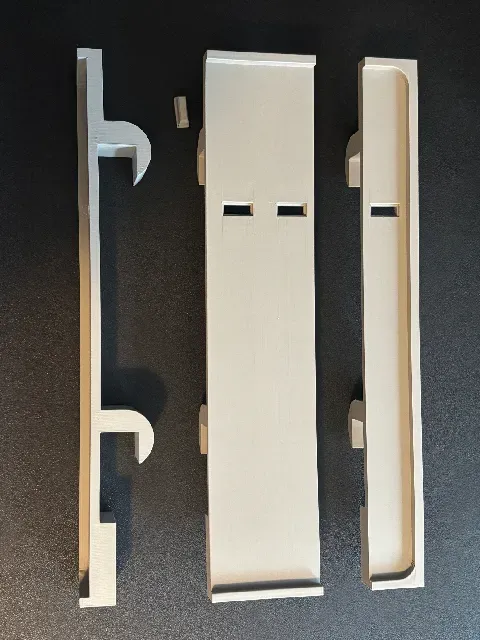

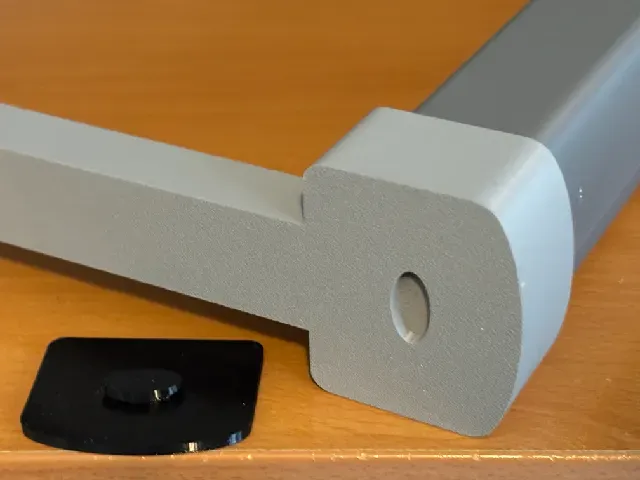

The top rails are free to slide (with a little resistance) left and right to accommodate various dryers, dry boxes and ACE MMU systems.

The following configurations are possible:

Standard (no Center) 50 mm to 278 mm

Standard with 1 Center 110 mm to 278 mm

Standard with 2 Center 170 mm to 278 mm

Wide (no Center) 158 mm to 385 mm

Wide with 1 Center 218 mm to 385 mm

Wide with 2 Center 278 mm to 385 mm

Extra Wide with 1 Center 176 to 461 mm

Extra Wide with 2 Center 236 to 461 mm

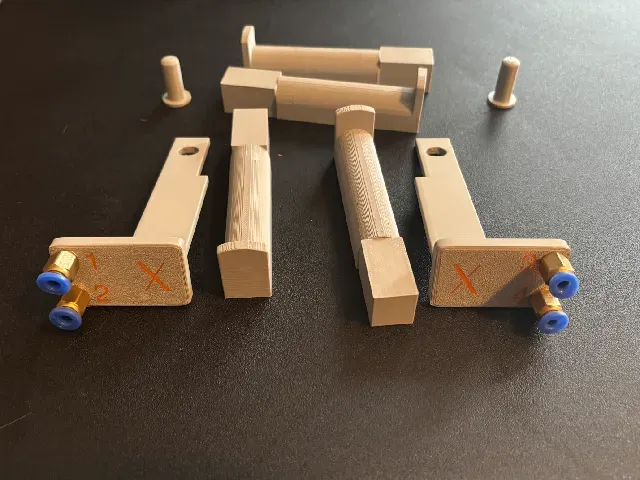

Each rail is secured in place with one TOP RAIL PIN to prevent it from moving

Print parts from both variants and create a combo Top and Side Mount system
